68HC16 & 68HC3xx Full In-Circuit & BDM Emulators


Freescale Motorola BDM Debugger for 68HC16 and 68300 series CPU In-circuit emulator card for Freescale and Motorola 68HC16 and 68HC300 series CPU 68HC16 and 68HC300 series in-circuit emulator pods Freescale and Motorola 68HC16 and 68HC300 series real-time triggered code trace memory In-circuit emulator chassis Freescale and Motorola 68HC16 and 68HC300 series emulator to target card adapters.


Select an emulator card, in-circuit pod, and chassis with our without the optional trace card to configure your emulator.
Or, we would be happy to configure an emulator for your project.
Email your target processor part number & clock speed

68HC16 & 68HC3xx Emulator parts list
Part Number For both 68HC16xx & 68HC3xx Series Freescale Background Mode Debugger - Price Shopping Cart

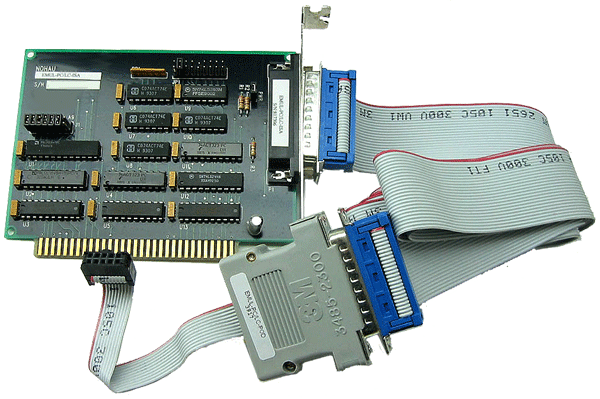

EMUL-PC/LC-POD 68HC16-68HC3XX Background Mode Debugger Kit with PC ISA interface board and includes the Seehau Debug Environment $300.00

Part Number Emulator Card - Required in full emulator system Top
Standard emulator boards are for use in the High Speed Parallel Box or as ISA plug-in boards. The emulator must be connected to a pod board to operate. The emulator includes the 5-foot cable that connects to the pod board and the Seehau debugger software. The software operates the emulator, pod and optional trace. Shadow RAM can see processor writes so that data can be displayed during emulation or exported to other Windows applications through Dynamic Data Exchange (DDE).
Price Shopping Cart
EMUL16/ E64-16 A 68HC16 emulator board that runs up to 16.78 MHz with 64K of Shadow RAM. Includes the Seehau Debug Environment $1,995.00

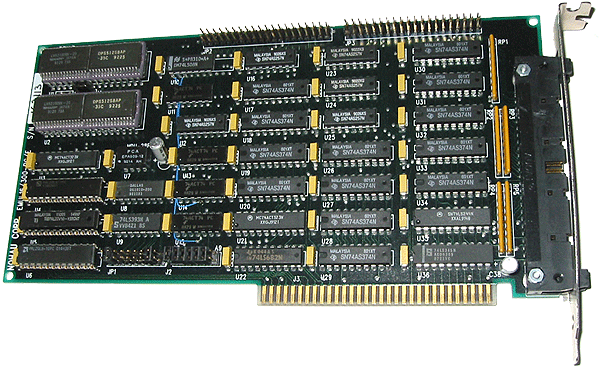

EML16/300-PC/E256-16.78 68HC16 & 68HC300 emulator board that supports in-circuit pods up to 16.78 MHz with 256K of Shadow RAM. Includes the Seehau Debug Environment $2,295.00
EMUL16/300-PC/E1M-16 68HC16 & 68HC300 emulator board that supports in-circuit pods up to 16.78 MHz with 1MB of Shadow RAM. Includes the Seehau Debug Environment $2,995.00

Part Number Optional Real-time Triggerd Trace History - Add anytime -  Top
Trace boards are optional and they can added at any time. These boards add trace memory for execution, data read and write history recording, triggers and Shadow RAM. Each trace frame holds 104 bits of data consisting of the following: address, data, time stamp, cycle type, cycle width and miscellaneous signals. The trace display includes address, data, timestamp, processor status, program flow, source code and labels. Shadow RAM displays data writes in real time without stealing emulation cycles. The trace board can be viewed and triggers can be configured without stealing CPU cycles for these housekeeping functions. Triggers can be set in anywhere within the memory range.
Price Shopping Cart
EMUL16/300-PC/DTR128-16 Code execution real time trace with data trace for 68HC16 and 683XX families. Holds 128K records. 16.78 MHz. This trace board can trigger on or filter combinations of fetch, read and write addresses and data values. $3,995.00
EMUL16/300-PC/TR32-16 Code execution real time trace with data trace for 68HC16 and 683XX families. Saves 32K records, 16.78 MHz max clock. This trace does not record data values. $1,195.00
EMUL16/300-PC/TR128-16 Code execution real time trace with data trace for 68HC16 and 683XX families. Saves 128K records, 16.78 MHz max clock. This trace does not record data values. $2,495.00


Part Number In-Circuit Pods - Required for Emulator - Top Price Shopping Cart
POD-16X1/256-16 For 68HC16X1/ 68HC916X1, 256K Shadow RAM in one memory bank,16 MHz Clock $1,195.00
POD-16Y1/256-16 For 68HC16Z1, 256K Shadow RAM in one memory bank,16 MHz Clock $1,195.00
POD-16Y1/1M4B-16 For 68HC16Z1, 1 Meg Shadow RAM in 4 memory banks,16 MHz Clock $2,795.00

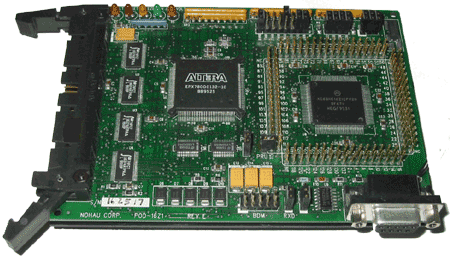

POD-16Z1/256-16 For 68HC16Z1, 256K Shadow RAM in one memory bank,16 MHz Clock $1,195.00
POD-16Z1/1M/1B-16 For 68HC16Z1 - 1 Mb Shadow RAM in 1 memory bank 16 MHz Clock $2,995.00
POD-16Z1/1M/1B-25 For 68HC16Z1 - 1 Mb Shadow RAM in 1 memory bank, 25 MHz Clock $3,395.00
POD-16Z1/1M/4B-25 For 68HC16Z1 - 1 Mb Shadow RAM in 4 memory banks, 25 MHz Clock $2,495.00

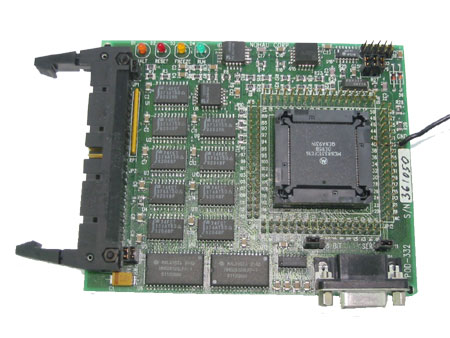

POD-331/256-16 For 68331 - 256K Shadow RAM in 1 memory bank, 16 MHz Clock $1,995.00

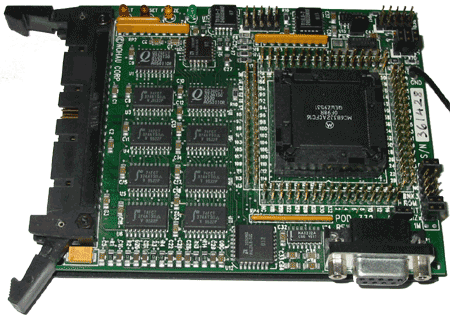

POD-332/256-16 For 68332 - 256K Shadow RAM in 1 memory bank, 16 MHz Clock $1,995.00
POD-332-1M4B-25 For 68332 - 1Mb Shadow RAM in 4 memory banks, 25 MHz Clock $2,895.00
POD-333/256-16 For 68F333 - 256K Shadow RAM in 1 memory bank, 16 MHz Clock $2,495.00
POD-336/256-25 For 68336 - 256K Shadow RAM in 1 memory bank, 25 MHz Clock $1,995.00
POD-338/256-14-3V For 68338 - 256K Shadow RAM in 1 memory bank, 14 MHz Clock $1,995.00
POD-338/4M4B-14-3V For 68338 - 1 Mb Shadow RAM in 4 memory banks, 14 MHz Clock $2,995.00

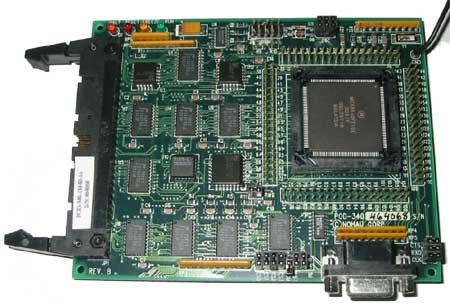

POD-340-1M4B-16 For 68340 - 1Mb Shadow RAM in 4 memory banks, 16 MHz Clock $1,995.00
POD-340-1M4B-25 For 68340 - 1Mb Shadow RAM in 4 memory banks, 25 MHz Clock $2,495.00
POD-341/256-16 For 68341 - 256K Shadow RAM in 1 memory bank, 16 MHz Clock $1,995.00
POD-341/256-25 For 68341 - 256K Shadow RAM in 1 memory bank, 25 MHz Clock $2,495.00
POD-376/256-25 For 68376 - 256K Shadow RAM in 1 memory bank, 25 MHz Clock $1,995.00

Part Number In-Circuit Emulator Chassis - Required Top Price Shopping Cart
EMUL-PC/BOX-HSP Emulator chassis with parallel port I/O & parallel PC cable $795.00

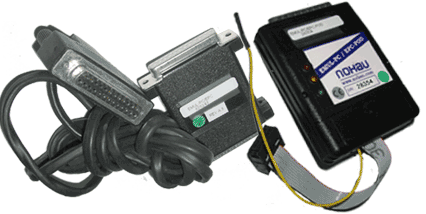

EMUL-PC/BOX-USB Emulator chassis with PC USB I/O $795.00

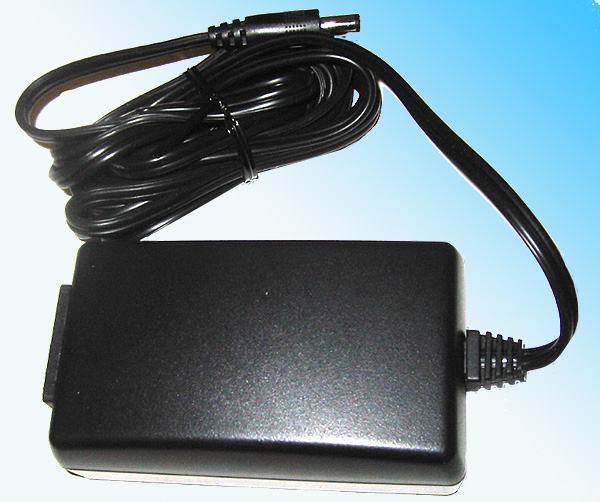

PS-6A Spare emulator chassis power supply $95.00
HSP-CABLE Spare emulator chassis active parallel interface $95.00
