Siemens 80C161, 80C163, & 80C166 In-Circuit Emulators and Accessories


A complete in-circuit emulator consists of the in-circuit pod, and an optional real-time trace card, optional XRAM daughter card, and target socket adapter.
The OCDS is a JTAG type emulator that is complete in itself. Seehau debug software is included with both emulator types.
Or, we would be happy to configure an emulator for your project.  Just email your target processor part number & clock speed


OCDS (On Chip Debugging Support) debuggers for the Infineon series of parts having this module 80C166 Series in-circuit emulator pods 80C166 Series in-circuit emulator pods In-circuit emulator real-time code execution triggered trace memory 80C166 Series emulator pod to target CPU site adapters

Part Number On Chip Debugger System OCDS -    Go to the top of this page Price Shopping Cart
EMUL166-OCDS-PC Nohau makes two OCDS (on chip debugging support) debuggers for the Infineon series of parts having this module. Currently these are for the C161 U, the C165 UTAH, the C165 H, the XC161 and the XC164.  These debuggers use the JTAG port on these devices.  The OCDS is specified for two levels.  Level One offers basic program control of the CPU including GO, STOP and LOAD.  From this start, the Seehau software provides more advanced features for your debugging needs.  Supports C161, XC161, XC164, C165 H, C165 UTAH, C166-V2 Includes the Seehau Debug Environment $2,595.00

Part Number In-Circuit Emulator Pod - Required    Go to the top of this page Price Shopping Cart
POD-167E3-256-40 E3 bondout emulator pod operating to 40 MHz. This pod has 512 Kbytes 32 bit ROM emulation memory and 256K general purpose 16 bit emulation memory. Features include unlimited hardware and software breakpoints, chip select or memory mapping and full access to the E3 bondout features Support for the following:
  • 80C161 V/K/OR,RI,PI, PI-3V, JI, JC, CS, O 161 O-3V
  • 80C163
  • 80C164CI
  • 80C165, 80C165Lx-3V
  • 80C167S, SR, CR, CS
Includes the Seehau Debug Environment
$6,195.00
POD-167-N256-33 Emulator pod operating to 33 MHz. This pod has 512 Kbytes 32 bit ROM emulation memory and 256K general purpose 16 bit emulation memory. Features include unlimited hardware and software breakpoints, chip select or memory mapping and full access to the E2 bondout features. Support for the following:
  • 80C161 V/K/OR,RI,PI, PI-3V, JI, JC,CS, 0, O-3V
  • 80C163
  • 80C164CI
  • 80C165, 80C165Lx-3V
  • 80C167S, SR, CR, CS
Includes the Seehau Debug Environment
$6,595.00
POD-167-N1M-33 Emulator pod operating to 33 MHz. This pod has 512 Kbytes 32 bit ROM emulation memory and 1 Mbyte general purpose 16 bit emulation memory. Features include unlimited hardware and software breakpoints, chip select or memory mapping and full access to the E2 bondout features. Support for the following:
  • 880C161 V/K/OR,RI,PI, PI-3V, JI, JC,CS, 0, O-3V
  • 80C163
  • 80C164CI
  • 80C165,80 C165Lx-3V
  • 80C167S, SR, CR, CS
Includes the Seehau Debug Environment
$6,995.00

Part Number Pod Emulation Accessories    Go to the top of this page Price Shopping Cart
EMUL166-PC/ADP-3V This mezzanine board inserts between the emulator and the target adapter to provide 3-volt target operation.  Supports the C161 and C165, C166 and ST10 3-volt versions.  There are jumpers to allow any parallel port in its entirety to be disconnected from the target. $595.00
EMUL166-PC/P161CS Daughter board required to emulate the C161 CS. It fits on header J45 of the pod and gives the ability to emulate the I2C, XRAM and 2 CAN modules of the C161 CS. $595.00
EMUL166-PC/XP161JC Daughter board required to emulate the C161 JC. It fits on header J45 of the pod and gives the ability to emulate the I2C, XRAM and 2 CAN modules of the C161 JC. $595.00
EMUL166-PC/XP161JI Daughter board required to emulate the C161 JI. It fits on header J45 of the pod and gives the ability to emulate the I2C, XRAM and J1850 ports of the C161 JI. $595.00
EMUL166-PC/XP161PI Daughter board required to emulate the C161 PI. It fits on header J45 of the pod and emulates the I2C and XRAM of the C161 PI. $595.00
EMUL166-PC/XP161RI Daughter board required to emulate the C161 RI. It fits on header J45 of the pod and gives the ability to emulate the I2C and XRAM of the C161 RI $595.00
EMUL166-PC /XP163 Daughter board required to emulate the C163. It fits on header J45 of the pod and gives the ability to emulate the SSP and XRAM of the C163. $595.00
EMUL-PC/XRAM Optional daughter board that supports up to 16K of RAM located on the XBUS for 5 volt designs. $595.00
EMUL-PC/XRAM-3.3-8 Optional daughter board that supports up to 16K of RAM located on the XBUS for 3.3v to 3.8 volt designs. $595.00

Part Number Optional Real-Time Triggered Trace History - Add anytime -    Go to the top of this page Price Shopping Cart
EMUL166-PC /LT-IETR-33 33 MHz trace with 128K deep buffer. This trace can trigger and filter on fetch, read and write addresses and on data values. (LT = “Large Trigger” within a 1MB trig range). This trace board is for E2 and E3 pods. Known as the "LT". $5,500.00
EMUL166-PC/SABRE-40 The 40 MHz Sabre trace has advanced triggering capabilities covers the full 16Mbyte addressing space.  It captures up to 128K frames of executed instructions and/or data or with user specified filters.  The trace display includes internal CPU bondout busses, times tamp, source and assembly or mixed mode, addresses, data and disassembled instructions.  The Sabre trace card plugs into the top of the emulator pod, and works with the E3 emulator version pods only. $7,995.00

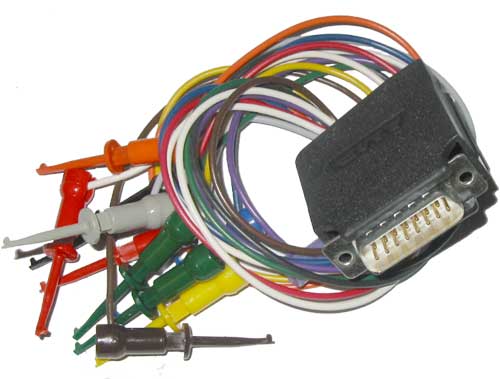

167 TRACE PROBE Trace card accessory - Spare 8 bit trace input and external trigger in probe. $190.00

Part Number Emulator to PC Interface Options Go to the top of this page Price Shopping Cart

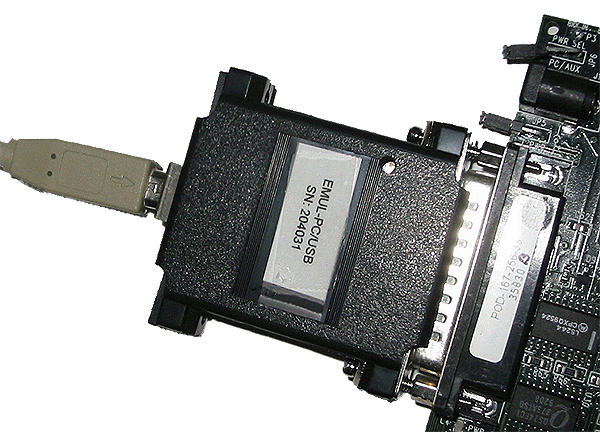

EMUL-PC/USB-ADP Emulator USB to PC Interface $995.00

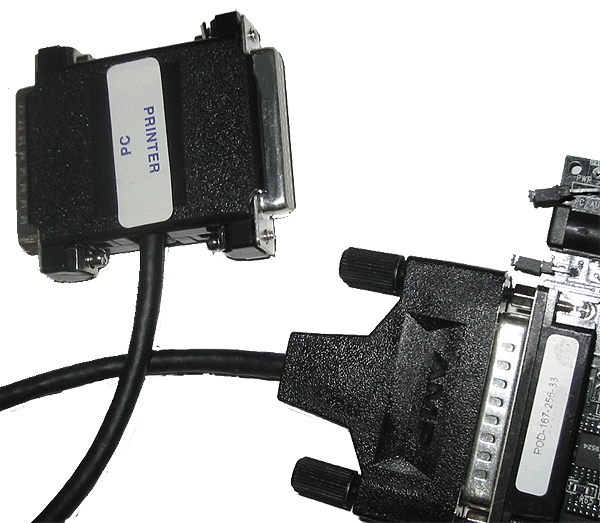

EMUL-PC/SET-HSP Emulator Parallel PC Interface $995.00
