Nohau 80C196 Series In-circuit Emulators and Accessories

Intel 80C196 Series In-circuit emulator cards Intel 80C196 Series In-circuit emulator pods 80C196 Series real-time code execution tirggered trace memory 80C196 Series emulator to CPU circuit card site adapter Emulator chassis with USB or PC parallel port I/O

Select an emulator card, in-circuit pod, and chassis with our without the optional trace card to configure your emulator.
Or, we would be happy to configure an emulator for your project.  Email your target processor part number & clock speed


Part Number Emulator Card - Required -    Go to the top of this page Price Shopping Cart
EMUL196-PC/E64-16 16-MHz emulator with 64K Shadow RAM. $995.00
EMUL196-PC/E64-25 16-MHz emulator with 64K Shadow RAM. $1,095.00
EMUL196-PC/E256-16 16-MHz emulator with 256K Shadow RAM. $1,195.00
EMUL196-PC/E256-25 25-MHz emulator with 256K Shadow RAM. $1,495.00
EMUL196-PC/E64-50 50-MHz emulator with 64K Shadow RAM $2,795.00
EMUL196-PC/E256-50 50-MHz emulator with 256K Shadow RAM. $3,195.00

Part Number Optional Real-time Triggerd Trace History - Add anytime -      Go to the top of this page Price Shopping Cart
EMUL196-PC/TR32-16 16-MHz Real-time Trace with 32K deep buffer. This trace can trigger and filter on fetch, read and write addresses. $995.00
EMUL196-PC/DTR128-16 16-MHz Real-time Trace, 128K deep buffer, trigger and filter on fetch, read and write addresses and on data values. $1,195.00
EMUL196-PC/DTR128-25 25-MHz Real-time Trace, 128K deep buffer, trigger and filter on fetch, read and write addresses and on data values. $1,995.00
EMUL196-PC/DTR128-50 50-MHz Real-time Trace, 128K deep buffer, trigger and filter on fetch, read and write addresses and on data values. $2,995.00

Part Number In-Circuit Emulator Pod - Required    Go to the top of this page Price Shopping Cart
POD-196-256/CA/CB-16 A 16-MHz pod for 80C196CA/CB, and 8XC198 with 256K emulation RAM. Requires a separate adapter to connect to the target. The adapter type is determined by emulated chip type. $1,797.00

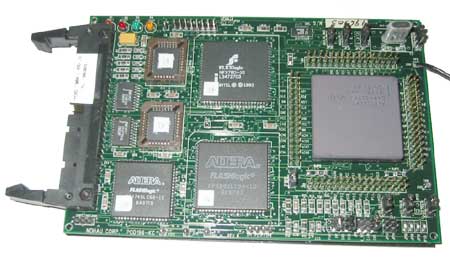

POD-196-64-KC/KD-20 A 20-MHz pod for 8XC194, 8XC196KB, KC, KD, and 8XC198 with 64K emulation RAM. Requires a separate adapter to connect to the target. The adapter type is determined by emulated chip type. This pod emulates external and single chip modes. No PRU is needed for single chip emulation. $2,195.00

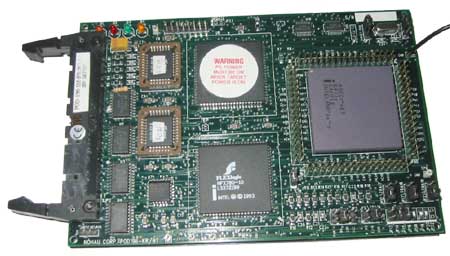

POD-196-256-KR/NT-16 16-MHz in-circuit pod for 8XC196JQ, JR, JT, KQ, KR, KS, KT, and NT. There is 256K emulation RAM for NT, and 64K emulation RAM for all parts. Supports only four pages for NT if any memory is mapped to emulator. Requires separate adapter to connect to the target. Adapter type is determined by emulated chip type. This pod emulates external mode only. $1,195.00
POD-196-256-KR/NT-20 20-MHz in-circuit pod for 8XC196JQ, JR, JT, KQ, KR, KS, KT, and NT. There is 256K emulation RAM for NT, and 64K emulation RAM for all parts. Supports only four pages for NT if any memory is mapped to emulator. Requires separate adapter to connect to the target. Adapter type is determined by emulated chip type. This pod emulates external mode only. $2,195.00
POD-196-1M-KR/NT-20 20-MHz in-circuit pod for 8XC196NT. There is 1 MB emulation RAM,(64K emulation RAM for 8XC196JQ, JR, JT, KQ, KR, KS, and KT). Requires separate adapter to connect to the target. The adapter type is determined by emulated chip type. This pod emulates external mode only. $3,245.00
POD-196-256-NP-25 8XC196NP A 25-MHz pod board for 8XC196NP. There is 256K emulation RAM. Supports only four pages if any memory is mapped to the emulator. Requires a separate adapter to connect to the target. ) No PRU is needed for single chip emulation. $2,295.00
POD-196-1M-NP-25 8XC196NP A 25-MHz pod board for 8XC196NP. There is 1 MB emulation RAM. Supports only four pages if any memory is mapped to the emulator. Requires a separate adapter to connect to the target. No PRU is needed for single chip emulation. $2,795.00
POD-196-256-NU-40 8XC196NU In-circuit POD, emulates up to 40-MHz. There is 256K< emulation RAM. Supports only four pages if any memory is mapped to the emulator. Requires a separate adapter to connect to the target. No PRU is needed for single chip emulation. $2,195.00

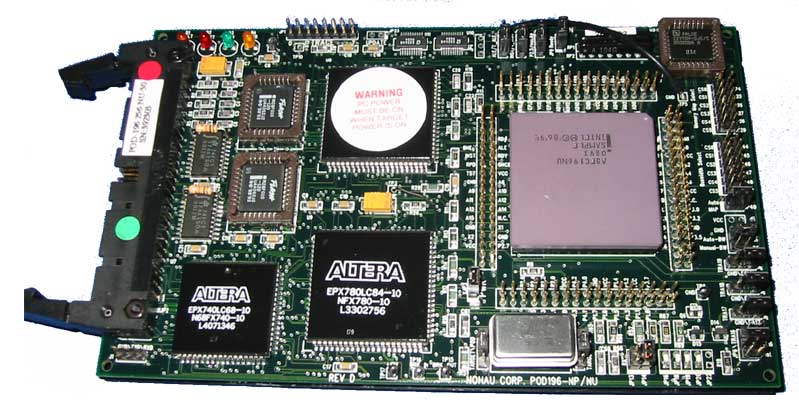

POD-196-256-NU-50 8XC196NU In-circuit POD, emulates up to 50-MHz. There is 256Kemulation RAM. Supports only four pages if any memory is mapped to the emulator. Requires a separate adapter to connect to the target. No PRU is needed for single chip emulation. $2,595.00

Part Number In-Circuit Emulator Chassis - Required    Go to the top of this page Price Shopping Cart
EMUL-PC/BOX-HSP Emulator chassis with parallel port I/O & parallel PC cable $595.00
EMUL-PC/BOX-USB Emulator chassis with PC USB I/O $595.00
PS-6A Spare emulator chassis power supply $95.00
HSP-CABLE Spare emulator chassis active parallel interface $95.00
