80C51/31 in-circuit pod to target site adapters

• Adapter catalog
• To 80C51 emulator shopping menu
• Shopping home page
• Links - Site and product

24 Pins	28 Pins	40 Pins	44 Pins	52 Pins
64 Pins	68 Pins	80 Pins	84 Pins	100 Pins

Part Number	24 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart
EDI/EXT24D3-2/6R	Extender cable. 24 pin female DIP to 24 pin male DIP.  An Aprilog product.	$60.00

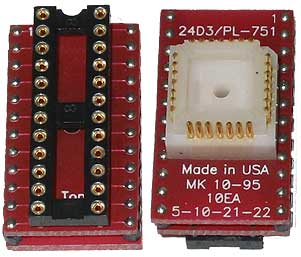

EDI/24D3/28PL-751	Adapts 80C751 24 pin DIP in circuit emulator pod to 28 pin PLCC socket. An Aprilog product.	$180.00
EDI/24D/28PL-2/6R	6 Inch extender cable. Adapts 80C751 24 pin DIP in circuit emulator pod to 28 pin PLCC socket. An Aprilog product.	$180.00

Part Number	28 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart
EDI/EXT28D6-1/6R	6 Inch extender cable. Female 28 pin DIP to 28 pin male DIP.  An Aprilog product.	$75.00
EDI/EXT28T/EST28T-P-1	6 Inch extender cable. Female 28 pin DIP to 28 pin male DIP with extra grounds. An Aprilog product.	$75.00
EDI/28D6/28PL	Adapts 28 pin DIP in circuit emulator pod to 28 pin PLCC socket.  An Aprilog product.	$180.00

Part Number	40 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart
EDI/40D/20S030-SD-8051/2051	Adapts 40 pin DIP pod to 20 pin Small Outline .300-inch solder down pattern for 8051 family pods to 2051 and 1051 targets. Does not emulate on-chip comparator.  An Aprilog product.	$180.00
EDI/ONCE-40D-CLIP-8051	ONCE DIP debug adapter. This adapter clips over the DIP 8051 for ONCE mode debugging. 40 pin DIP socket clip-over for 40 pin DIP emulator.  An Aprilog product.	$120.00
EDI/ONCE-40D/44PL-CLP-8051	ONCE PLCC debug adapter. This adapter clips over the PLCC 8051 for ONCE mode debugging. Adapter 44 pin clip-over PLCC socket to 40 pin DIP emulator.  An Aprilog product.	$210.00
EDI/40D/44PL-8051-L	Adapter assembly, 40 pin DIP socket to 44 pin PLCC 8051 family.  An Aprilog product.	$180.00
ET/AC-DIP-QF16-8031/51-TP-A	Adapter 40 pin DIP socket to 44 pin, 0.80mm pitch, 10mm SQFP surface mount for 8051 family.	$180.00

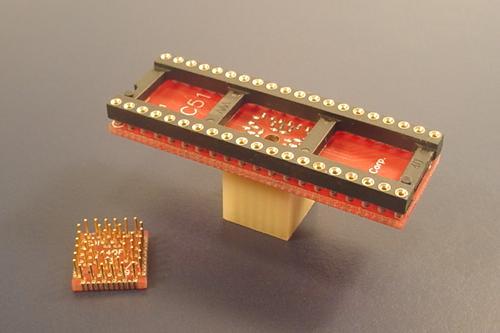

EDI/40D/44QFS31-SD-8051	Adapter assembly, 40 pin DIP socket to 44 pin QFP Square 0.031-inch pitch,surface mount, 8051 family. Includes one top and one 44QFS31-SD base to solder to user target board. An Aprilog product.	$180.00
EMUL51-PC/ATMEL2051	Adapter to emulate Atmel AT89C2051, AT89C1051 using POD-C52. 40 pin DIP socket accepts either pod. 20 pin DIP plug to target system. An Aprilog product.	$195.00

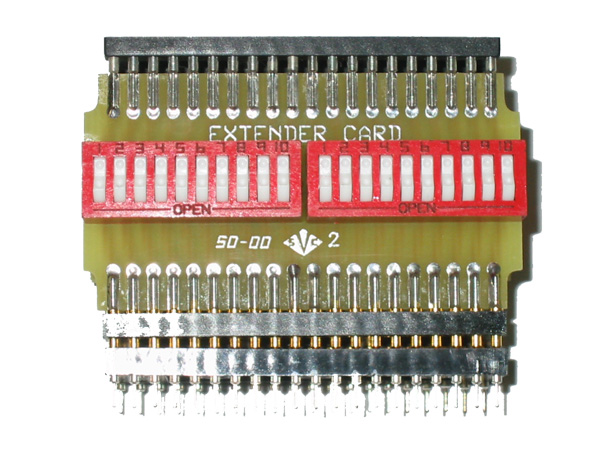

EMUL51-PC/DIP40-ISO	40 pin DIP Extender/Isolator All lines switched  An Aprilog product.	$65.00
EMUL51-PC/DIP40-PLCC44	EDI/44PL - 40 pin DIP to 44 pin PLCC plug.  An Aprilog product.	$180.00

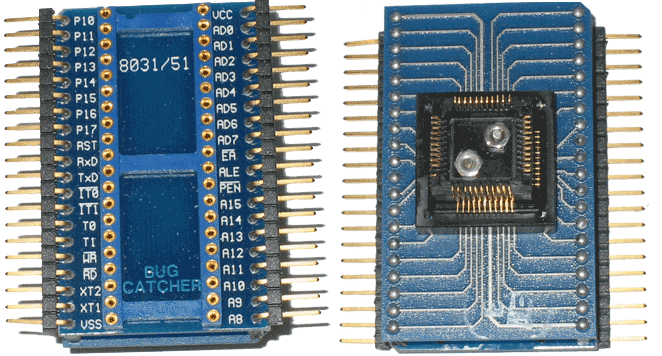

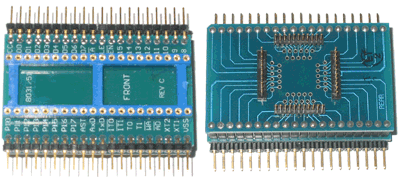

ET/AS-DIP-QF16S-8031/51	40 pin DIP socket to 44 pin QFP surface mount base. Drawing	$65.00

Part Number	44 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart

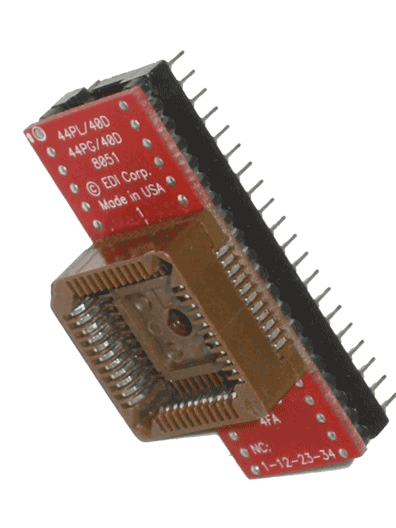

EDI/44PL/40D-S-8051	Adapter for the top side of some Nohau 40 pin pods to allow you to place a 44 pin PLCC part into a 40 pin DIP socket on your Nohau pod. (This adapter is not for the target connection side.) An Aprilog product.	$80.00
EDI/44PL/QFS31-SD	Adapter for a 44 pin PLCC part to a 44 pad QFP surface mount site. Includes one EDI/44QFS31B-SD surface mount QFP base. An Aprilog product.	$185.00

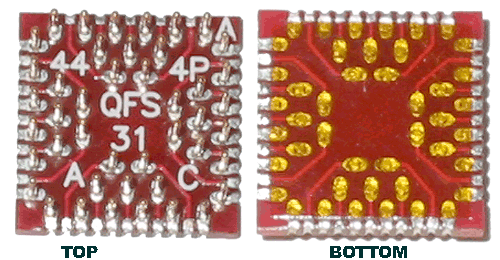

EDI/44QFS31B-SD	Additional base only: 44 pin QFP Square 0.031-inch pitchsurface mount base for EDI/40D/44QFS31B-8051. To solder to an additional target board. An Aprilog product.	$90.00
EDI/44PG/PL	EDI/44PG/PL adapter, 44 pin PGA socket to 44 pin PLCC plug. An Aprilog product.	$180.00
EDI/1EP44PG/PL-L	Adapter, 44 pin PGA socket to 44 pin PLCC plug. An Aprilog product.	$180.00
EDI/EXT44PG/PL-1/6R	Six inch extender cable from 44 pin in-circuit pod PGA to 44 pin PLCC plug. An Aprilog product.	$290.00

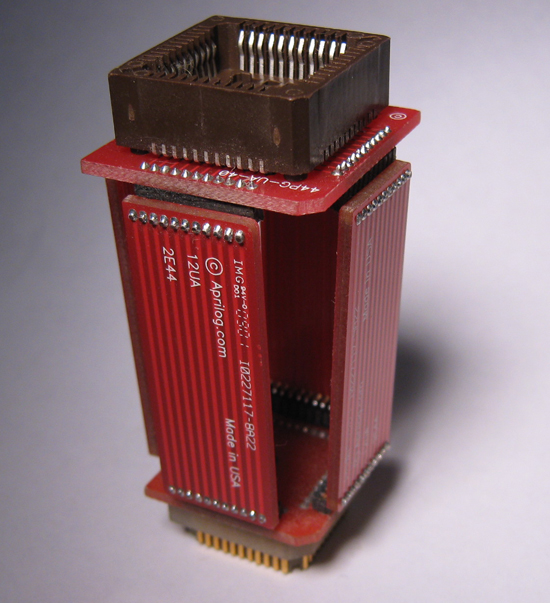

2E44PL-PL	2 Inch, 44 pin PLCC socket elevator. Plugs into a 44 pin PLCC socket and provides an additional 2 inches of clearance above the circuit card PLCC socket. An Aprilog product.	$185.00
EDI/44PG/40D-550-S	Adapter assembly, Pod PGA 80C550 pins to 40 pin DIP An Aprilog product.	$120.00
EDI/44PG/40D-S-8051	Adapter assembly, Pod PGA 80C51 pins to 40 pin DIP. An Aprilog product.	$120.00
EDI/44PG/LC-SD	Adapter assembly, 44 pin PGA socket to 44 pin surface mount base that is soldered to user target board. Includes one top and one EDI/44LC-SD base. An Aprilog product.	$190.00

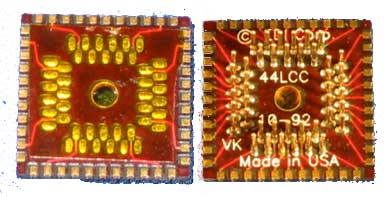

EDI/44LC-SD	Additional surface mount base only. 44 pin solder down base for EDI/44G/LC-SD An Aprilog product.	$70.00
EDI/44PG/QFS31-SD	Adapter assembly, 44 pin PGA socket to 44 pin QFP Square 0.031-inch pitch,surface mount, 8051 family. Includes one top and one EDI/44QFS31-SD base to solder to user target board. An Aprilog product.	$180.00
EDI/44PG/40D-S-8051	Adapter for 44 pin PGA to a 40 pin DIP. An Aprilog product.	$80.00
EDI/ONCE-40D/44PL-CLP-8051	Adapter 40 pin DIP socket to 44 pin PLCC component. This adapter clips over the 8051 for ONCE mode debugging. An Aprilog product.	$120.00

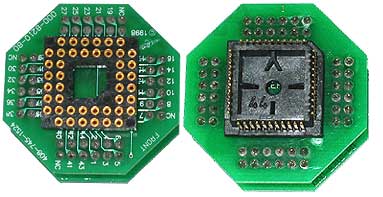

ES/180-3900-00	Replacement 44 pin PLCC adapter for the POD-51EH-C541U. Plugs into a 44 pin PLCC socket.	$225.00
ET/EP4-44-WW	44 pin Logic analyzer test adapter. Plugs into a 44 pin PLCC socket and provides test points for each pin. Drawing	$149.00

Part Number	52 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart
ES/000-2085	Replacement 52 pin surface mount adapter NQ base. Drawing	$100.00
ES/000-2086	Replacement 52 pin NQ microcontroller cover (HQ) Drawing	$90.00
ES/000-2087	Replacement 52 pin NQ emulator cover (YQ) Drawing	$110.00
ES/000-2755	Replacement 52 pin TQ spacer between thesurface mount base and the adapter. Drawing	$55.00

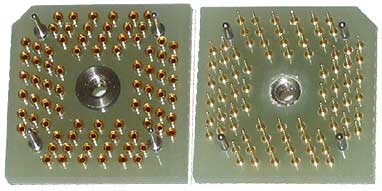

ES/000-2865	Replacement 52 pin TQ spacer between thesurface mount base and the adapter. Drawing	$85.00
ES/000-3588	Replacement 52 pin NQ spacer between thesurface mount base and the adapter. Drawing	$120.00

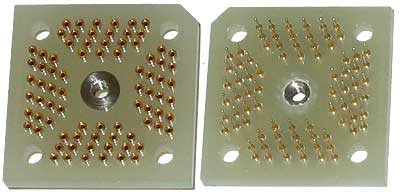

ES/000-3658	Replacement 52 pin NQ spacer between thesurface mount base and the adapter. Drawing	$90.00
ES/000-4472	Replacement 52 pin TQsurface mount adapter base. Drawing	$120.00
ES/000-4532	Replacement 52 pin TQsurface mount adapter base.	$75.00
EMUL51-PSD/ ADP-52-NQ-Set	An 52 pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 52 pin NQ adapter base part # ES/000-2085, an emulator cover (YQ) part # ES/000-2087, a microcontroller cover (HQ) part # ES/000-2086, a spacer part # ES/000-3588 and the EMUL-51/ADP-uPSD3000-52 adapter mezzanine board.	$530.00
EMUL51-PSD/ADP-52-TQ-Set	An 52 pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 52 pin TQ adapter base part # ES-000-4472, a spacer part # ES/000-2755 and the EMUL-51/ADP-uPSD3000-52 adapter mezzanine board	$390.00
EMUL51-PC/PGA52-PLCC52	EDI/52PG/PL-L adapter, 52 pin PGA socket to 52 pin PLCC plug.	$140.00
EDI/52PG/40D-530/520-S	Adapter, 52 pin PGA socket to 40 pin DIP, to plug into 80C320 or 8XC520 DIP target with POD-C520-PGA. (530/520 family).	$85.00
EDI/52PG/44PL-530/520	Adapter, 52 pin PGA socket to 44 pin PLCC, to plug into 8XC520 PLCC target with POD-C520-PGA	$155.00
EDI/52PG/44QFS31-SD-530/520	Adapter, 52 pin PGA socket to 44 pin Quad Flat Square 0.031-inch pitch,surface mount, for 8XC520 target with POD-C520-PGA	$295.00

Part Number	64 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart

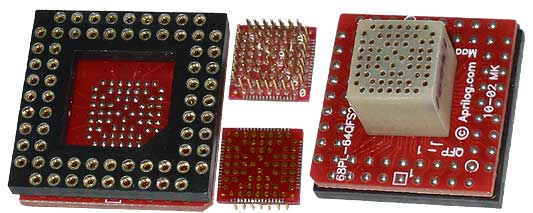

EDI/68PG/64QFS20-SD-554	64 Pin QFP surface mount adapter for POD-554-PGA	$145.00
EDI/64QFS20-SDB	Replacement 64 Pin QFP surface mount base for EDI/68PG/64QFS20-SD-554 adapter for POD-554-PGA.	$115.00
ES/180-5545-00	64 pin MQFP adapter for POD-51EH-C508.	$395.00

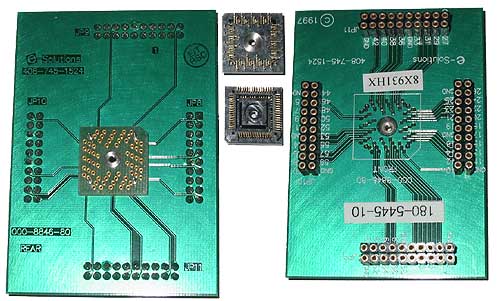

ES/180-1400-00	Replacement adapter for the discontinued POD-931xX-12 pods, surface mount, for 64 pin PQFP package	$400.00
ES/180-1400-01	Replacement adapter for the discontinued POD-931xX-12 pods, surface mount, for 64 pin SDIP package	$200.00

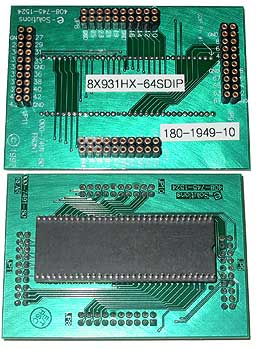

ES/180-1949-10	Adapter for DIP sockets using the discontinued POD-931xX-12 in-circuit pods.	$89.00	>

Part Number	68 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart
68PG-64QFS20-89C51ED	68 Pin PGA to 64 TQFP pads. Connects the in-circuit pod to Atmel 8x51ED and 8x51RD microcontrollers 64 TQFP pads.	$270.00
EMUL51-PC/PGA68-ISO-PLCC6	EDI/ISV68PG/PL adapter-isolator, 68 pin PGA to 68 pin PLCC	$245.00

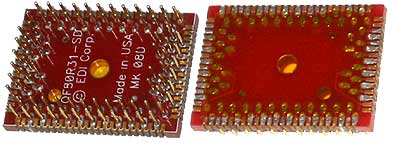

EDI/80QFR31-SD	Replacement 80 pin QFP Rectangular 0.031-inch pitch,surface mount adapter base	$119.00

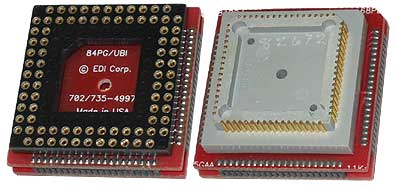

EDI/84PG/68PL-515-517	68 Pin PLCC adapter for POD-C515A-PGA-18 & POD-C517B-PGA.	$145.00

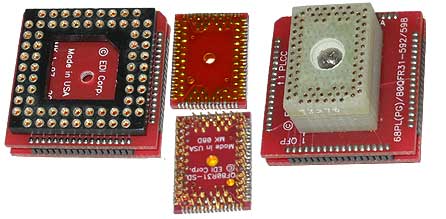

EDI/68PG/80QFR31-SD-592/598	Adapter assembly, 68 pin PGA socket to 80 pin QFP Rectangular 0.031-inch pitch,surface mount, 8XC592. Includes one top and one 80QFR31-SD base to solder to user target board.	$295.00
EMUL51-PC/PGA68-PLCC68	EDI/68PG/PL adapter, 68 pin PGA socket to 68 pin PLCC plug.	$200.00
EMUL51-PC/PGA68-ISO	EDI/ISV68PG/PG isolator, 68 pin PGA	$280.00
EDI/68PG/80QFR31-SD-552	Adapter assembly, 68 pin PGA socket to 80 pin QFP Rectangular 0.031-inch pitch,surface mount, 8XC552. Includes one top and one 80QFR31-SD base to solder to user target board.	$295.00
EDI/68PG/80QFR31-SD-592	Adapter assembly, 68 pin PGA socket to 80 pin QFP Rectangular 0.031-inch pitch,surface mount, 8XC592. Includes one top and one 80QFR31-SD base to solder to user target board.	$295.00

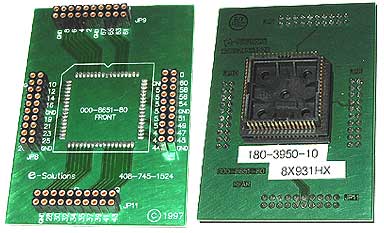

ES/180-3950-10	Replacement adapter for the discontinued POD-931xX-12 pods, plugs into 68 pin PLCC socket. Drawing	$220.00

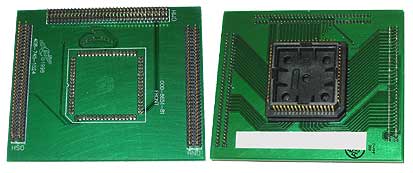

ES/180-3960-10	68 pin PLCC adapter for POD-51EH-C515 and POD-51EH-C515A. Drawing	$240.00

Part Number	80 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart
EMUL51-PSD/ ADP-80-NQ-Set	An 80 pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 80 pin NQ adapter base part # ES/000-2174, an emulator cover (YQ) part # ES/000-2176, a microcontroller cover (HQ) part # ES/000-2175, a spacer part # ES/000-3658 and the EMUL-51/ADP-uPSD3000-80 adapter mezzanine board.	$595.00
EMUL51-PSD/ADP-80-TQ-Set	An 80 pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 80 pin TQ adapter base part # ES-000-4532, a spacer part # ES/000-2865 and the EMUL-51/ADP-uPSD3000-80 adapter mezzanine board.	$400.00
EDI/80QFR31-SD	Additional base only: 80 pin QFP Rectangular 0.031-inch pitchsurface mount base for 68PG/80QFR31-552. To solder to an additional target board.	$125.00
ES/000-2174	Replacement 80 pin surface mount adapter NQ base (NQPACK080SD) Drawing	$130.00
ES/000-2175	Replacement 80 pin surface mount adapter NQ microcontroller cover (HQPACK080SD)	$229.00
ES/000-2176	Replacement 80 pin surface mount adapter NQ emulator cover (YQPACK052SD)	$229.00

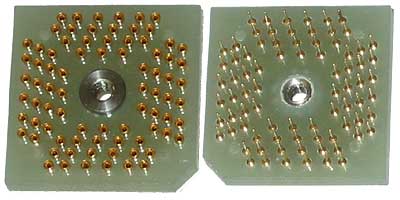

ES/000-2864	TQ Square spacer, 0.50mm pitch, no guide fasteners.(TQSOCKET080SDN) Drawing	$95.00
ES/000-3658	Replacement 80 pin square, TQ, 0.50mm pitch spacer between the surface mount base and the adapter PCB (YQ).	$95.00

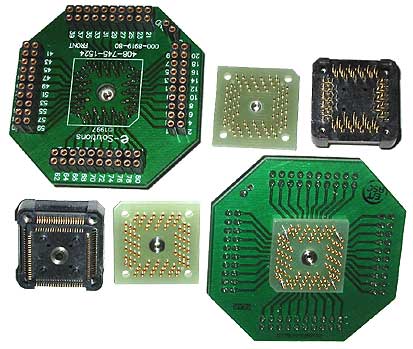

ES/180-5550-00	80-pin QFP adapter for POD-51EH-C515C. Surface mount. Includes one ES/000-4534 base. Additional bases are available separately. Drawing	$450.00
ES/180-5550-40	80 pin QFP adapter for POD-51EH-C515. Surface mount. This adapter has a socket that accepts a regular chip when the pod is not plugged into an adapter. Drawing	$595.00

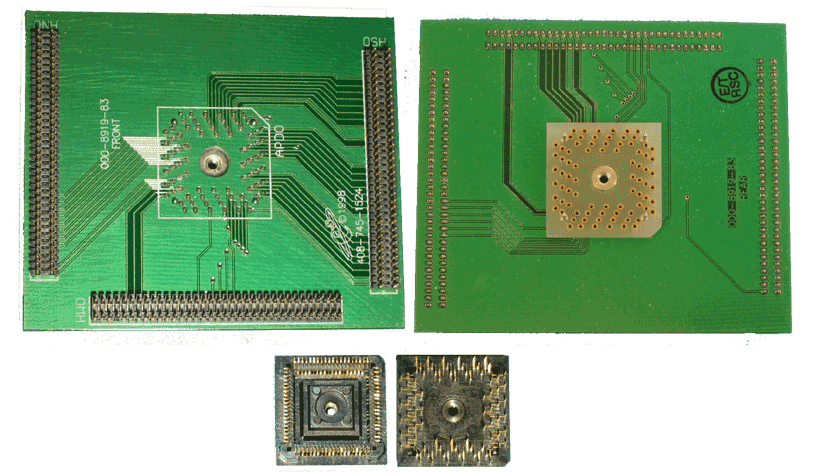

ES/180-5550-45	80 pin QFP adapter for POD-51EH-C515. Surface mount. Drawing	$450.00

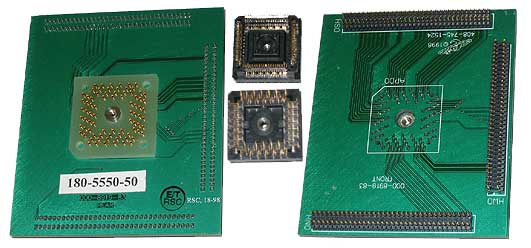

ES/180-5550-50	Surface mount 80 pin QFP adapter for POD-51EH-C515C. Surface mount. Drawing	$595.00
ES/180-5550-65	80 pin QFP adapter for POD-51EH-C505L. Surface mount. Drawing	$450.00	>
ES/180-5550-50	80 pin QFP adapter for POD-51EH-C515C. Surface mount. This adapter has a socket that accepts a regular chip when the pod is not plugged into an adapter.	$595.00
ES/180-5550-55	80 pin QFP adapter for POD-51EH-C515C. Surface mount. Includes one ES/000-4534 base. Additional bases are available separately.	$595.00
ES/000-4534	Replacement 80 pin, .65mm surface mount TQ adapter base (TQPACK080SB) Drawing	$48.00

Part Number	84 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart

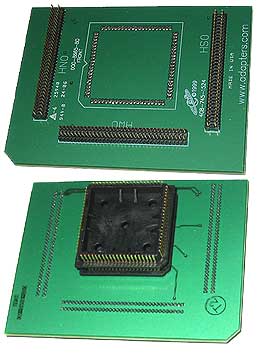

ES/180-3975-10	84 pin PLCC adapter for POD-51EH-C517A.	$335.00

Part Number	100 Pin Adapters - Emulator Pod to Target Site	Price	Shopping Cart

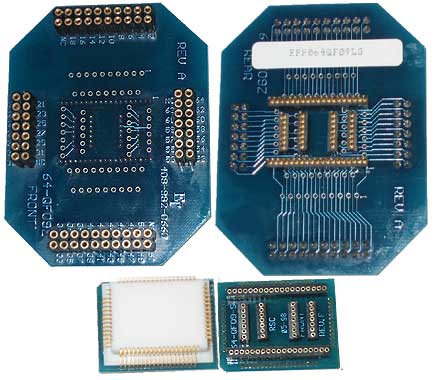

ET/EPP064QF09LG	Surface mount 100 pin QFP adapter for POD-5001.	$215.00

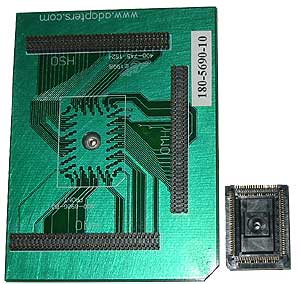

ES/180-5690-10	100 pin QFP adapter for POD-51EH-C517A. The surface mount base is soldered to user target board.	$515.00

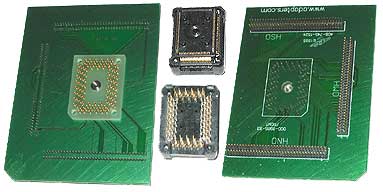

ES/180-5690-20	100-pin QFP adapter for POD-51EH-C517A. Surface mount. This adapter has a socket that accepts a regular chip when the pod is not plugged into an adapter. Drawing	$650.00
