Nohau ARM Emulators and development kits
Have us configure an emulator for you.  Click to email your ARM processor number & clock speed for system configuration - price & delivery.
Part Number Description
$ Price

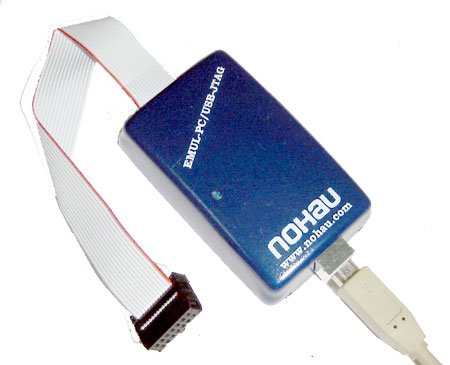

EMUL-ARM-STD ARM7 and ARM9-based cores are supported, including ARM7TDMI, ARM710, ARM720T, ARM790T, ARM9TDMI, ARM920T, ARM922T, ARM940T and ARM9x6. The EMUL-ARM-STD emulator consists of:
  • Seehau ARM Debugger
  • 14 or 20 Pin JTAG header connector
  • FLASH programming,
  • CTM standard support
  • Includes the Seehau Debug Environment
  • User manual.
$895.00
EMUL-ARM-ETM This is an ARM JTAG as above plus the ETM trace module that supports the 4, 8, or 16 bit embedded trace macrocell. Provides fro 2 tp 8 trigger levels dependent upon the ETM configuration on the ARM based chip.
$1,890.00
EMUL-ARM-Nexus This is an ARM JTAG as above plus the Nexus trace module.
$1,890.00
Note: For a 14-pin version append -14-PIN to the above part numbers.

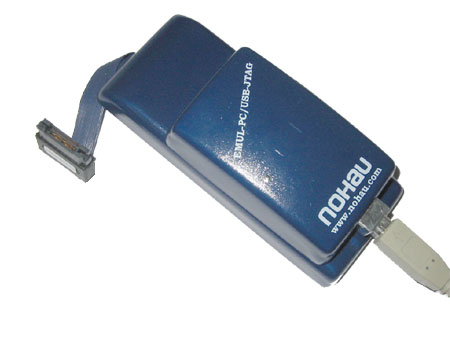

EMUL-CTM-STD This is an upgrade trace module that simply plugs on to a user's previously purchased ARM JTAG. This ARM ETM trace upgrade supports the 4, 8, or 16 bit embedded trace macrocell. Provides fro 2 tp 8 trigger levels dependent upon the ETM configuration on the ARM based chip.
$995.00
EMUL-CTM-Nexus This is an ARM Nexsus trace module upgrade that simply plugs on to a user's previously purchased ARM JTAG. This trace board that supports Nexus level II and III trace. Level II and III trace support.
$995.00

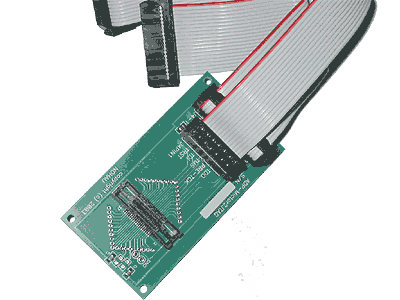

ADP-MICTOR2JTAG The ADP-Mictor2JTAG adapter board provides Mictor CTM connection to a plain 14-pin or 20-pin JTAG port.
$195.00

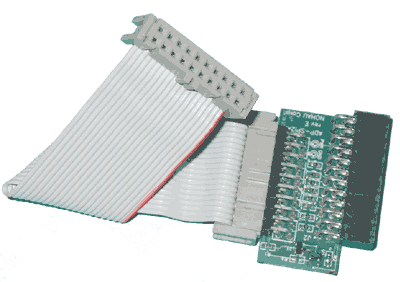

EMUL-ARM/ADP-20PIN Alternate cable assembly for connecting to a 20-pin target connector.
$72.00
EMUL-ARM/ADP-14PIN Alternate cable assembly for connecting to a 14-pin target connector.
$72.00

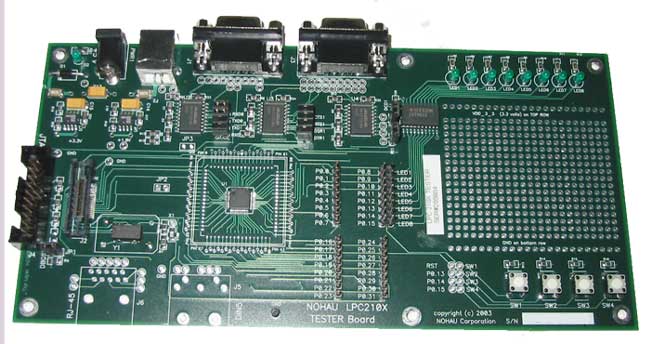

EVAL/LPC2106 NXP - Philips LPC2106 MCU
  • Has CPU internal memory only - 64KB SRAM - 512KB FLASH
  • Easy access to most I/O pins
  • USB Device port - Prototyping area
  • 8 User LEDs - 3 User Buttons
  • Two RS232 DB9 Serial ports
  • 20 Pin JTAG - Mictor JTAG Trace port.
$235.00
EVAL/LPC2800 NXP - Philips LPC2888 MCU
  • AA Battery, USB or External 5VDC Power in -16MB FLASH
  • LDC- SD Slot - USB -RS232 UART - Headphone jack, JTAG Port
  • easy access to most I/O pins - prototyping area with 3.3V power
  • User LED - user push buttons - many user I/O connectors
$995.00

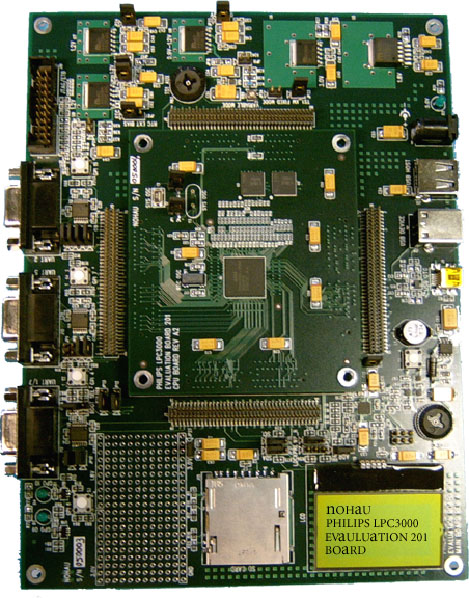

EVAL/LPC3000 NXP - Philips LPC3180 MCU
  • 32 M byte SDRAM & FLASH - LCD - SD Slot
  • USB Host, Device, OTG Connectors with Philips ISP1301
  • 3 UART with DB9 connector
  • 4 User push buttons - 2 User LEDs
  • 4 80-Pin break-out headers - Prototyping area
  • One external 5V DC suppy provides all EVB voltages
$1,195.00
