XA Series Emulator to target site adapters




Part Number Adapters - Emulator to Unit Under Test    Go to the top of this page Price Shopping Cart

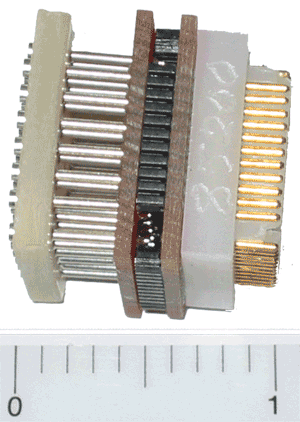

EDI/44PG/PL-L 44 Pin PLCC emulation adapter for 80C51XAC3, 80C51XAG3, 80C51XAG49 $ 120.00

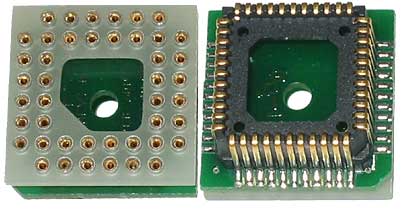

MCK44-PGA/PLCC 44 Pin emulation adapter for 80C51XAC3, 80C51XAG3, 80C51XAG49 $ 120.00
EDI/44PG/LC-SD 44 Pin surface mount adapter for 80C51XAC3, 80C51XAG3, 80C51XAG49 $ 190.00
EDI/44PL/QFS31-SD 44 Pin QFS, surface mount adapter for 80C51XAC3, 80C51XAG3, 80C51XAG49 $ 180.00
EDI/44QFS31-SD Replacememnt surface mount base for EDI/44PPG/QFS31SD emulation adapter $ 110.00

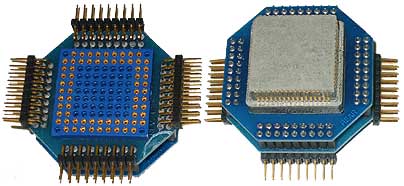

ET/AP4-68-PGA 68 Pin PLCC Plug to socket adapter for the S3 in-circuit pod. Drawing   $ 120.00
ET/AP4-68-SUB1 68 Pin PLCC Clip-over adapter for the S3 in-circuit pod $ 160.00

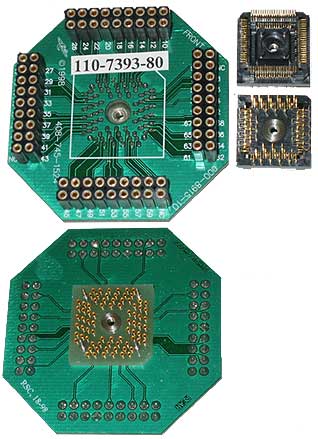

ES/110-7393-80 80 Pin surface mount adapter kit for 80C51XAS3. Consists of a transition board and TQPACK080SD SMD base. $ 495.00
ET/EPP100QF49W 100 Pin, .50mm lead pitch, surface mount adapter for 80C51XASSC, 80C51XAH3, 80C51XAH4 $ 625.00
ET/EPP-100-QF49-SM A replacement 100-pin QFP solder-down base for ET/EPP100QF49W. Drawing   $365.00
