SOIC ZIF Socket to SOIC Surface Mount Component Site Adapters

This is a two part adapter kit providing a way to temporarily plug SMT surface mount components to a circuit card under test. The bottom part (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the PCB card solder pads. The top part plugs into the SMT base and has ZIF socket to hold the SMT component.

Adapters are listed in ascending pin count order.

8SO15-SO-ZO-SD		ZIF open top socket to SMT pads for 8 lead SOIC package. 8 Pins SOIC Package Package-width 153 mils Spare SMT base is part number 8SO15-SD Plug-in replaceable socket. Uses socket number 652B0082211 Adapter vertical clearance 400 mils	$80.00
14SO15-SO-ZO-SD		ZIF open top socket to SMT pads for 14 lead SOIC package. 14 Pins SOIC Package Package-width 153 mils Spare SMT base is part number 14SO15-SD Adapter vertical clearance 400 mils	$95.00

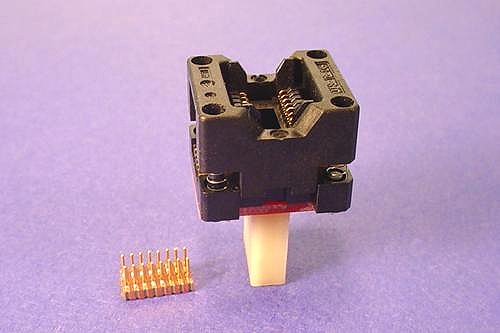

16SO15-SO-ZO-SD		ZIF open top socket to SMT pads for 14 lead SOIC package. 16 Pins SOIC Package Package-width 153 mils Spare SMT base is part number 16SO15-SD Adapter vertical clearance 400 mils	$100.00
20SO21-SO-ZL-SD		ZIF clam shell closed top socket to SMT pads for 20 lead SOIC package. 20 Pins SOIC Package Package-width 208 mils Spare SMT base is part number 20SO21-SD Adapter vertical clearance 400 mils	$120.00
20SO30A-SO-ZL-SD		ZIF clam shell closed top socket to SMT pads for 20 lead SOIC package. 20 Pins SOIC Package Package-width 300 mils 419 mils Tip to tip Spare SMT base is part number 20SO30-SD Adapter vertical clearance 400 mils	$120.00

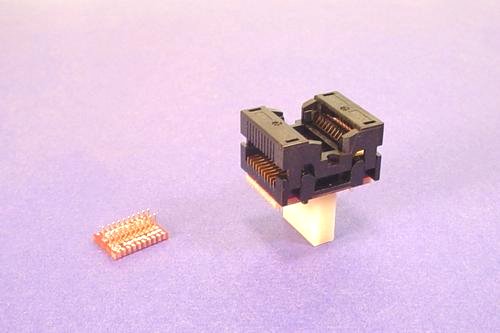

20SO30A-SO-ZO-SD		ZIF Open top socket to SMT pads for 20 lead SOIC package. 20 Pins SOIC Package Package-width 300 mils 419 mils Tip to tip Spare SMT base is part number 20SO30-SD Adapter vertical clearance 400 mils	$120.00
24SO30A-SO-ZO-SD		ZIF Open top socket to SMT pads for 24 lead SOIC package. 24 Pins SOIC Package Package-width 300 mils 419 mils Tip to tip Spare SMT base is part number 24SO30-SD Adapter vertical clearance 400 mils	$130.00

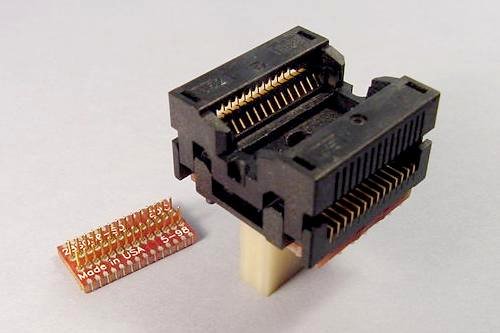

28SO30A-SO-ZO-SD		ZIF Open top socket to SMT pads for 28 lead SOIC package. 28 Pins SOIC Package Package-width 300 mils 419 mils Tip to tip Spare SMT base is part number 28SO30-SD Adapter vertical clearance 400 mils	$140.00
32SO30A-SO-ZO-SD		ZIF Open top socket to SMT pads for 32 lead SOIC package. 32 Pins SOIC Package Package-width 300 mils 419 mils Tip to tip Spare SMT base is part number 32SO30-SD Adapter vertical clearance 400 mils	$150.00
40SO45-SO-ZO-SD		ZIF Open top socket to SMT pads for 40 lead SOIC package. 40 Pins SOIC Package Package-width 450 mils Spare SMT base is part number 44SO45-SD Adapter vertical clearance 400 mils	$170.00
44SO51-SO-ZL-SD		ZIF clam shell closed top socket to SMT pads for 44 lead SOIC package. 44 Pins SOIC Package Package-width 508 mils Spare SMT base is part number 44SO51-SD Adapter vertical clearance 400 mils	$200.00

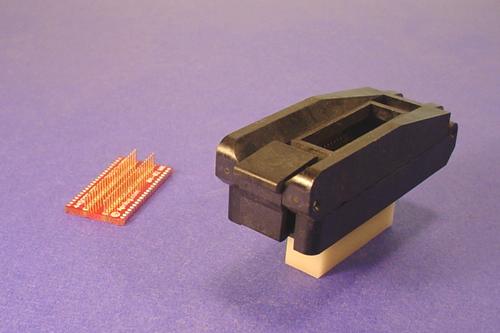

44SO52-SO-ZL-SD		ZIF clam shell closed top socket to SMT pads for 44 lead SOIC package. 44 Pins SOIC Package Package-width 520 mils Spare SMT base is part number 44SO52-SD Adapter vertical clearance 400 mils	$200.00
44SO53-SO-ZL-SD		ZIF clam shell closed top socket to SMT pads for 44 lead SOIC package. 44 Pins SOIC Package Package-width 580 mils Spare SMT base is part number 44SO53-SD Adapter vertical clearance 400 mils	$200.00
