TQFP ZIF Socket to TQFP Surface Mount Component Site Adapters

This is a two part adapter kit providing a way to temporarily plug SMT surface mount components to a circuit card under test. The bottom part (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the PCB card solder pads. The top part plugs into the SMT base and has ZIF socket to hold the SMT component.

Adapters are listed in ascending pin count order.
One surface mount base is included with each adapter.

32 Pins

44 Pins

48 Pins

64 Pins

80 Pins

100 Pins

112 Pins

144 Pins

160 Pins

176 Pins

208 Pins

Part Number		Description	Price	Shopping Cart

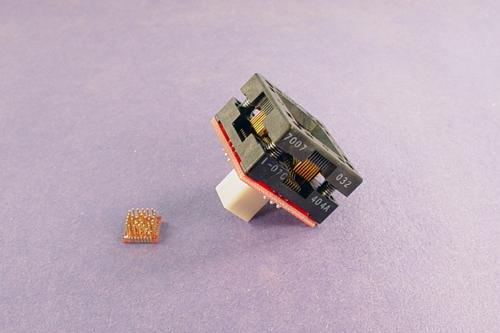

32QFS31-QF-ZO-SD		ZIF open top socket to SMT pads for 32 lead QFP package 32 Pins 0.8mm pitch Tip to Tip 9.0mm Replacement ZIF socket is7007-032-6-07 Spare SMT base is part number 32QFS31-SD Spare SMT base with alignment pins part number is 32QFS31-SDA Adapter vertical clearance 400-mils	$240.00

Part Number		Description	Price	Shopping Cart

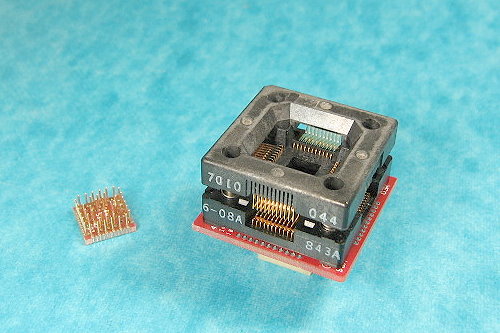

44QFS31A-QF-ZO-SD		ZIF open top socket to SMT pads for 44 lead QFP package 44 Pins 0.8mm pitch Tip to Tip 12.0mm Replacement ZIF socket is 7010-044-6-08 Spare SMT base is part number44QFS31-SD Spare SMT base with alignment pins part number 44QFS31-SDA Adapter vertical clearance 400-mils	$270.00

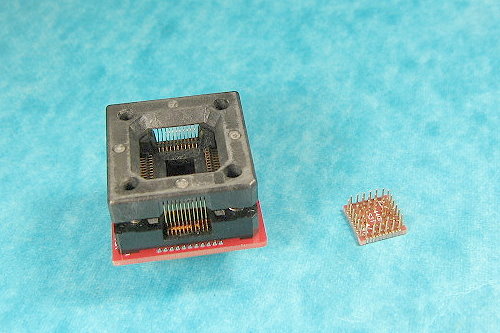

44QFS31B-QF-ZO-SD		ZIF open top socket to SMT pads for 44 lead QFP package 44 Pins 0.8mm pitch Tip to Tip 13.2mm Spare SMT base is part number 44QFS31B-SD Spare SMT base with alignment pins part number 44QFS31B-SDA Adapter vertical clearance 400-mils	$270.00

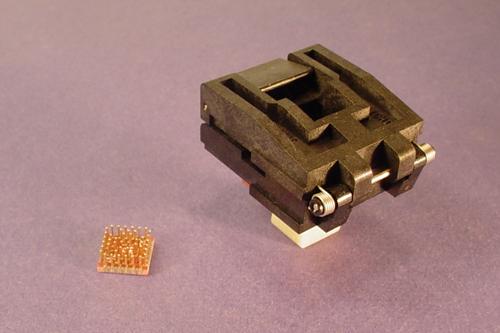

44QFS31C-QF-ZL-SD		ZIF clamshell socket to SMT pads for 44 lead QFP package 44 Pins 0.8mm pitch Tip to Tip 12.6mm Replacement ZIF socket is IC51-0444-825 Spare SMT base is part number 44QFS31-SD Spare SMT base with alignment pins part number 44QFS31-SDA Adapter vertical clearance 400-mils	$270.00

Part Number		Description	Price	Shopping Cart

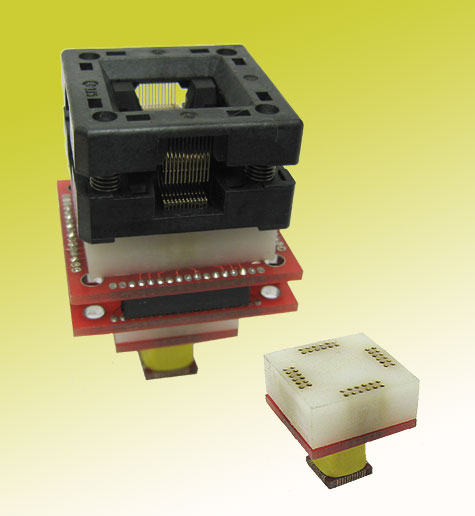

48QFS20-QF-ZO-SD2		ZIF open top socket to SMT pads for 48 lead QFP package 48 Pins 0.5mm pitch Tip to Tip 9.0mm Replacement ZIF socket is 7007-048-6-07 Spare SMT base is part number 48QFS20-SD2 Adapter vertical clearance 400-mils	$345.00

Part Number		Description	Price	Shopping Cart
64QFS20-QF-ZO-SD		ZIF open top socket to SMT pads for 64 lead QFP package 64 Pins 0.5mm pitch Tip to Tip 12.0mm Replacement ZIF socket is 7010-064-6-08 Spare SMT base is part number 64QFS20-SD Spare SMT base with alignment pins part number 64QFS20-SDA Adapter vertical clearance 400-mils	$361.00
64QFS31B-QF-ZL-SD		ZIF clamshell socket to SMT pads for 64 lead QFP package 64 Pins 0.8mm pitch Tip to Tip 17.9mm Replacement ZIF socket is IC51-0644-824-2 Spare SMT base is part number 64QFS31B-SD Spare SMT base with alignment pins part number 64QFS31B-SDA Adapter vertical clearance 400-mils	$330.00

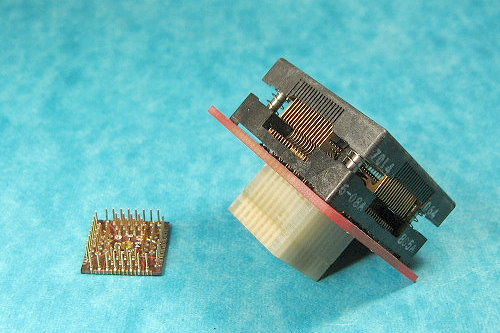

64QFS31D-QF-ZO-SD		ZIF open top socket to SMT pads for 64 lead QFP package 64 Pins 0.8mm pitch Tip to Tip 16.0mm Replacement ZIF socket is 7014-064-6-08 Spare SMT base is part number 64QFS31-SD Spare SMT base with alignment pins part number 64QFS31D-SDA Adapter vertical clearance 400-mils	$330.00

Part Number		Description	Price	Shopping Cart
80QFR31C-QF-ZL-SD		ZIF clamshell socket to SMT pads for 64 lead QFP package 80 Pins 0.8mm pitch Tip to Tip 17.6 x 23.6mm Spare SMT base is part number 80QFR31-SD Spare SMT base with alignment pins. Order no. 80QFR31-SDA Adapter vertical clearance 400 mils	$360.00

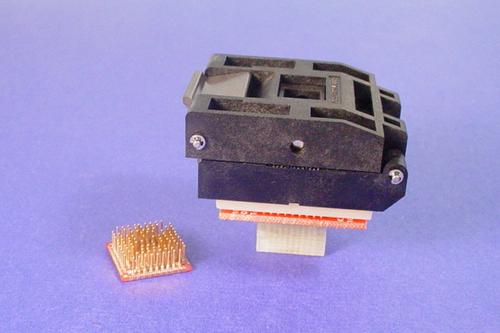

80QFS20-QF-ZL-SD		ZIF clamshell closed top square socket to SMT pads for 80 lead QFP package 80 Pins 0.5mm pitch Tip to Tip 14.0mm Spare SMT base is part number 80QFS20-SD Spare SMT base with alignment pins part number 80QFS20-SDA Replacement socket it IC51-0804-808 Adapter vertical clearance 400-mils	$392.00
80QFS20-QF-ZO-SD		ZIF open top square socket to SMT pads for 80 lead QFP package 80 Pins 0.5mm pitch Tip to Tip 14.0mm Spare SMT base is part number 80QFS20-SD Spare SMT base with alignment pins part number 80QFS20-SDA Replacement ZIF socket is 7012-080-06-08 Adapter vertical clearance 400-mils	$392.00

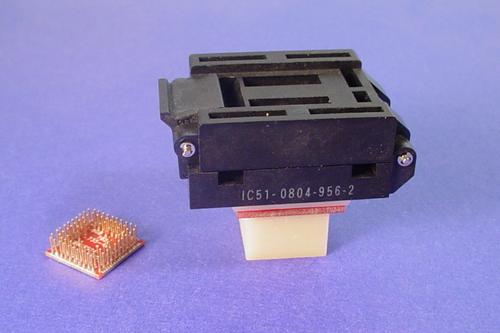

80QFS26A-QF-ZL-SD		ZIF Hinge lid, clamshell socket to SMT pads for 80 lead QFP package 80 Pins 0.65mm pitch Tip to Tip 17.2mm Spare SMT base is part number 80QFS26-SD Spare SMT base with alignment pins part number 80QFS26-SDA Replacement socket is IC51-0804-956-2 Adapter vertical clearance 400-mils	$385.00

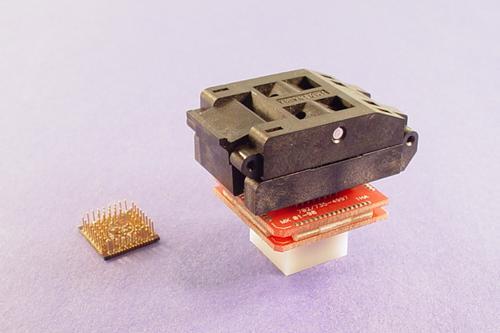

80QFS26D-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 80 lead QFP package 80 Pins 0.65mm pitch Tip to Tip 16.0mm Spare SMT base is part number 80QFS26-SD Spare SMT base with alignment pins part number 80QFS26D-SDA Replacement ZIF socket is IC51-0804-795 Adapter vertical clearance 400-mils	$360.00
80QFS26D-QF-Z0-SD		ZIF open top socket to SMT pads for 80 lead QFP package 80 Pins 0.65mm pitch Tip to Tip 16.0mm Spare SMT base is part number 80QFS26-SD Spare SMT base with alignment pins part number 80QFS26D-SDA Replacement socket 7014-080-06-08 Adapter vertical clearance 400-mils	$385.00

Part Number		Description	Price	Shopping Cart
100QFR26A-QF-ZO-SD		ZIF Open top socket to SMT pads for 100 lead QFP rectangular package 100 Pins 0.65mm pitch Tip to Tip 17.2 x 23.6mm Spare SMT base is part number 100QFR26A-SD Spare SMT base with alignment pins is no. 100QFR26A-SDA Replacement socket 7342-100-06-07 Adapter vertical clearance 400-mils	$485.00

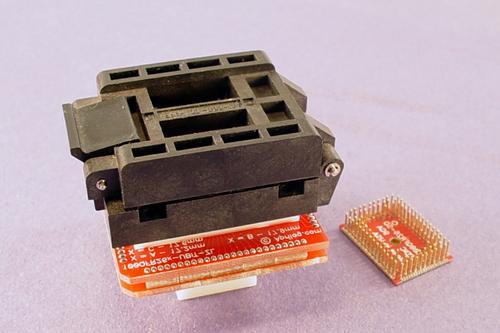

100QFR26C-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 100 lead QFP package 100 Pins 0.65mm pitch Tip to Tip 17.6 x 23.6mm Spare SMT base is part number 100QFR26-SD Spare SMT base with alignment pins part number 100QFR26-SDA Replacement ZIF socket is IC51-1004-814-2 Adapter vertical clearance 400-mils	$385.00
100QFR26D-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 100 lead QFP package 100 Pins 0.65mm pitch Tip to Tip 19.0 x 25.00mm Spare SMT base is part number 100QFR26B-SD Adapter vertical clearance 400-mils	$385.00
100QFR26D-QF-ZO-SD		ZIF open top socket to SMT pads for 100 lead QFP package 100 Pins 0.65mm pitch Tip to Tip 16.0 x 22.0mm  Spare SMT base is part number 100QFR26D-SD Spare SMT base with alignment pins part number 100QFR26D-SDA Replacement socket part number is 7042-100-06-08 Adapter vertical clearance 400-mils	$385.00
100QFS16-QF-ZO-SD		ZIF open top socket to SMT pads for 100 lead QFP package 100 Pins 0.4mm pitch Tip to Tip 14.0mm Spare SMT base is part number 100QFS16-SD Spare SMT base with alignment pins part number 100QFS16-SDA Replacement ZIF socket is IC234-1004-045 Adapter vertical clearance 400-mils	$500.00

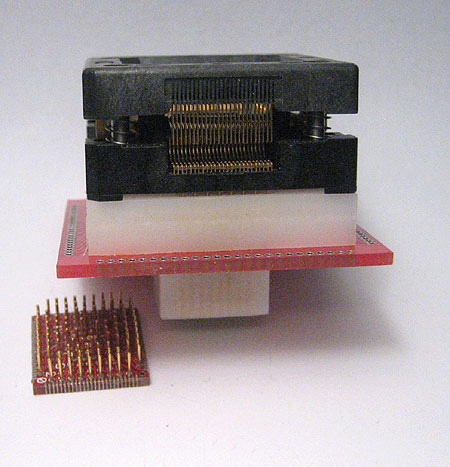

100QFS20-QF-ZO-SD		ZIF open top socket to SMT pads for 100 lead TQFP package 100 Pins 0.5mm pitch Tip to Tip 16.0mm Spare SMT base is part number 100QFS20-SD Spare SMT base with alignment pins part number 100QFS20-SDA Replacement ZIF socket is 7014-100-06-08 Adapter vertical clearance 400-mils	$423.00

Part Number		Description	Price	Shopping Cart

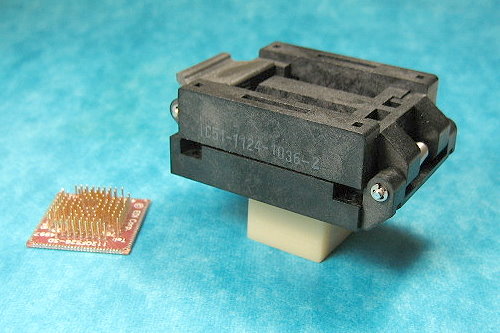

112QFS26A-QF-ZL-SD		ZIF clamshell lidded socket to pads for 112 lead QFP package with tip to tip of 23.3mm. 112 Pins 0.65mm pitch Tip to Tip 22.2mm Spare SMT base is part number112QFS26-SD Replacement ZIF socket is IC51-1124-1036-2 Adapter vertical clearance 400-mils	$398.00

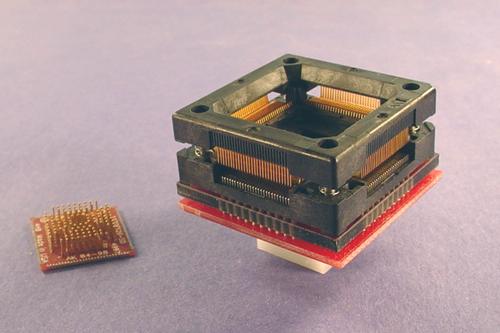

112QFS26C-QF-ZO-SD		ZIF open top socket to pads for 112 lead QFP package with tip-to-tip of 0.65mm. 112 Pins 0.65mm pitch Tip to Tip 22.0mm Adapter vertical clearance 400-mils	$398.00

Part Number		Description	Price	Shopping Cart
144QFS20-QF-ZO-SD		ZIF Open lidded socket to pads for 144 lead QFP package with tip to tip of 22.0mm. 144 Pins 0.5mm pitch Tip to Tip 22.0mm Spare SMT base is part number144QFS20-SD Replacement ZIF socket is 7020-144-6-08 Adapter vertical clearance 400-mils	$450.00
144QFS26A-QF-ZO-SD		ZIF Open lidded socket to pads for 144 lead QFP package with tip to tip of 32.2mm. 144 Pins 0.65mm pitch Tip to Tip 32.2mm Spare SMT base is part number144QFS26-SD Replacement ZIF socket is 7326-144-6-08 Adapter vertical clearance 400-mils	$450.00

Part Number		Description	Price	Shopping Cart
160QFS20-QF-ZO-SD		ZIF open top socket to pads for 160 lead QFP package with tip-to-tip of 26.0mm. 160 Pins 0.5mm pitch Tip to Tip 26.0mm Spare SMT base is part number 160QFS20-SD Replacement ZIF socket is 7024-160-6-08 Adapter vertical clearance 400-mils	$460.00

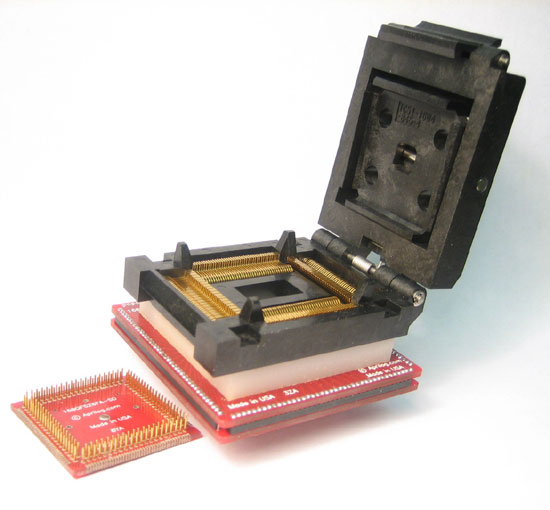

160QFS26A-QF-ZL-SD		ZIF clamshell lidded socket to pads for 160 lead QFP package with tip-to-tip of 31.2mm. 160 Pins 0.65mm pitch Tip to Tip 31.2mm Adapter vertical clearance 400-mils	$460.00

Part Number		Description	Price	Shopping Cart
176QFS16-QF-ZO-SD		ZIF open top socket to pads for 176 lead QFP package with tip-to-tip of 22.0mm. 176 Pins 0.4mm pitch Tip to Tip 22.0mm Replacement ZIF socket is 680H1765111 Spare SMT base is part number 176QFS16-SD Spare SMT base with alignment pins part number 176QFS76-SDA Adapter vertical clearance 400-mils	$510.00
176QFS16-QF-ZO-SD		ZIF open top socket to pads for 176 lead QFP package with tip-to-tip of 22.0mm. 176 Pins 0.5mm pitch Tip to Tip 26.0mm Replacement ZIF socket is 7024-176-6-08 Spare SMT base is part number 176QFS20-SD Spare SMT base with alignment pins part number 176QFS76-SDA Adapter vertical clearance 400-mils	$510.00

Part Number		Description	Price	Shopping Cart
208QFS20A-QF-ZO-SD		ZIF open top socket to pads for 208 lead QFP package with tip-to-tip of 30.6mm. 208 Pins 0.5mm pitch Tip to Tip 30.6mm Replacement ZIF socket is 7228-208-6-08 Spare SMT base is part number 208QFS20-SD Spare SMT base with alignment pins part number 208QFS20-SDA Adapter vertical clearance 400-mils	$630.00

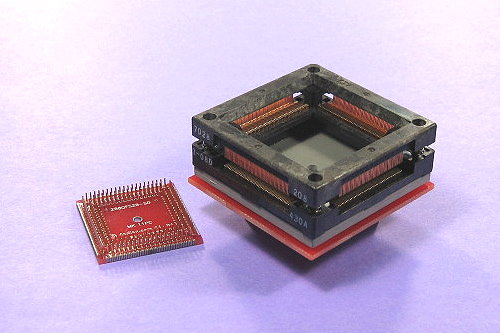

208QFS20C-QF-ZO-SD		ZIF open top socket to pads for 208 lead QFP package with tip-to-tip of 30.6mm. 208 Pins 0.5mm pitch Tip to Tip 30.0mm Replacement ZIF socket is 7028-208-6-08 Spare SMT base is part number 208QFS20-SD Spare SMT base with alignment pins part number 208QFS20-SDA Adapter vertical clearance 400-mils	$630.00
