PGA Sockets to Surface Mount Component Site Adapters

This is a two part adapter kit providing a way to temporarily connect a pin grid array to PCB surface mount pads on a circuit card under test. The bottom part (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the PCB card solder pads. The top part plugs into the SMT base and has a PGA, pin grid array socket.

Adapters are listed in ascending adapter top PGA pin receptacle count order.

44 PGA Pins 52 PGA Pins 68 PGA Pins 80 Pins


Part Number   44 Pin    Price Shopping Cart

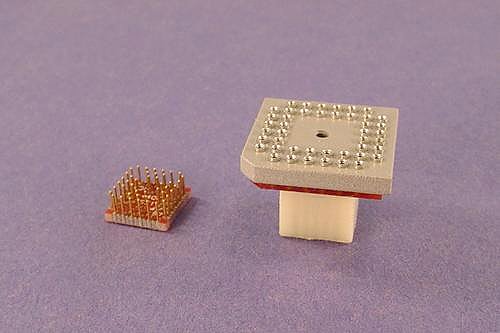

44PG-QFS31-SD   44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one.
  • PGA to QFP TQFP pads
  • 44 Pins
  • 0.8 mm Pitch SMT pads
  • 12.0 - 12.6 mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 400 mils
$180.00

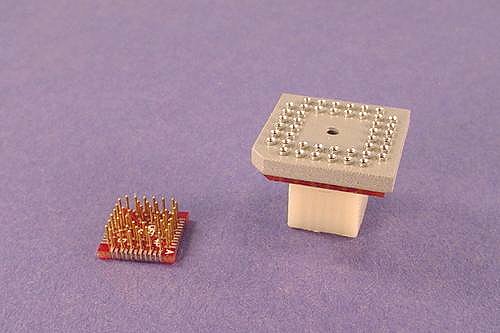

44QFS31B-SD   44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one.
  • PGA to QFP TQFP pads
  • 44 Pins
  • 0.8 mm Pitch SMT pads
  • 13.2 mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31B-SD
  • Vertical clearance 400 mils
$180.00

Part Number   52 Pin    Price Shopping Cart

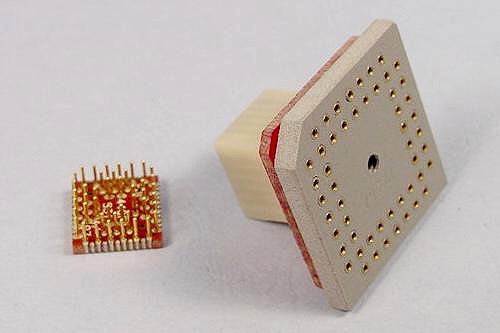

52PG-44QFS31-SD-80C530-80C520   52 Pin PGA to 44 QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads.
  • 52 Pin PGA to 44 Pad QFP TQFP
  • 0.8 mm Pitch SMT pads
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 400 mils
$230.00

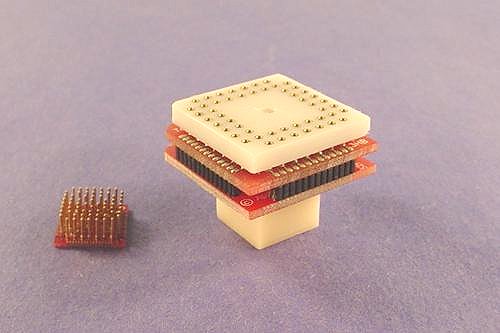

52PG-64QF20-SD-AT89C5131   52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to an Atmel AT89C5131 microcontroller 64 lead TQFP pads.
  • 52 Pin PGA to 64 Pad QFP TQFP
  • 0.5 mm Pitch SMT pads
  • 12.0 mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 400 mils
$296.00

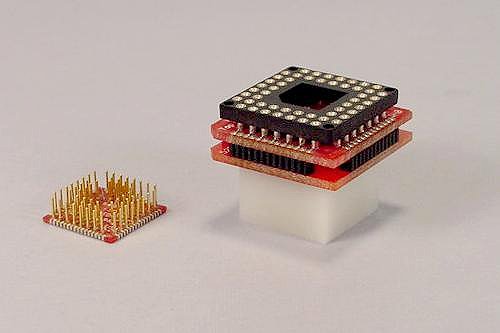

52PG-64QFS31-SD-68HC11   52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11E9 microcontroller 64 lead TQFP pads. $260.00

Part Number   68 Pin    Price Shopping Cart
68PG-64QFS31-SD-68HC11F1   68 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11F1 microcontroller 64 TQFP pads. $270.00

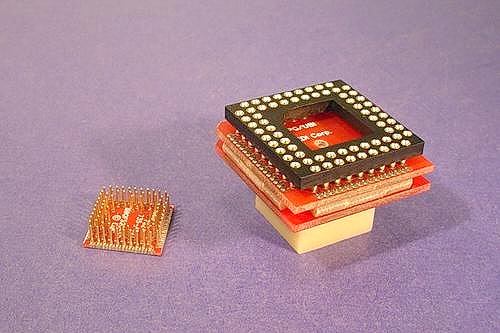

68PG-80QFS26-SD-68HC11F1 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11F1 microcontroller 80 lead TQFP pads. $345.00
68PG-80QFS26-SD-68HC11KA 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11KA & 68HC11KS microcontrollers 80 lead TQFP pads. $345.00

Part Number   80 Pin       Price Shopping Cart
84PG-112QFS26-SD-68HC11PH8   84 Pin PGA to 112 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11PH8 microcontroller 112 lead TQFP pads. $360.00
