Nohau Brand 80251 Series In-circuit Emulators and Accessories
We are just beginning to post our inventory. If you don't see what you need, call or drop us a line.
800.68.NOHAU - 800.686.6428 - in the USA or 650.375.0409 international.
Email the target chip part number and clock speed for a configured emulator spec - price - delivery

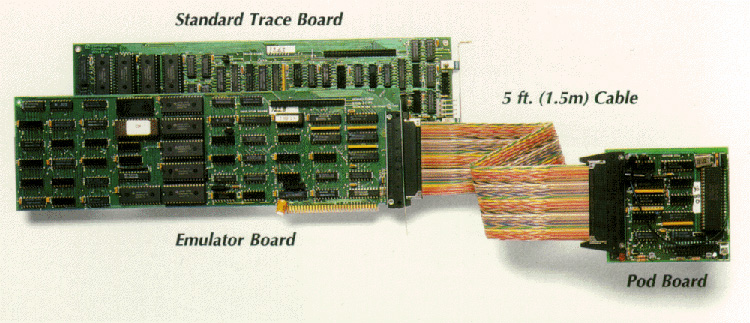

A full in-circuit emulator consists of an Emulator Card, In-Circuit Emultor Pod, and an
optional Trace Card that mount in a chassis. Target socket adapters are needed for some processors.
| Part Number
| Emulator Card - Required -Back to top
Standard emulator boards are for use in the High Speed Parallel Box or as ISA plug-in boards. The emulator must be connected to a pod board to operate. The emulator includes the 5-foot cable that connects to the pod board and the Seehau debugger software. The software operates the emulator, pod and optional trace. Shadow RAM can see processor writes so that data can be displayed during emulation or exported to other Windows applications through Dynamic Data Exchange (DDE).
| Price
| Order it
|
| Part Number
| Optional Real-time Triggerd Trace History - Add anytime - Back to top
Trace boards are optional and they can added at any time. These boards add trace memory for execution, data read and write history Each trace frame holds data consisting of the following: address, data, time stamp, cycle type,and miscellaneous signals. The trace display includes address, data, timestamp,source code and labels. Shadow RAM displays data writes in real time without stealing emulation cycles. The trace board can be viewed and triggers can be configured without stealing CPU cycles for these housekeeping functions. Triggers can be set in anywhere within the memory range.
| Price
| Order it
|
| Part Number
| 80251 In-Circuit Pod - Required for Emulator - Back to top
| Price
| Order it
|
| Part Number
| In-Circuit Emulator Chassis - Required Back to top
| Price
| Order it
|
