Part NumberEmulator Adapter Sets   Go to the top of this page Price Shopping Cart
EMUL-S12XF/ADP-NQ-64-Set 64 Pin NQ CPU package- This set connects an MC9S12XF emulator system to an 64 pin NQFP CPU site. The set consists of:
  • Surface mount NQ adapter base, part # ES/000-2105 (NQPACK064SD)
  • Microcontroller cover, part # ES/000-2106 (HQPACK064SD)
  • Emulator cover, part # ES/000-2107 (YQPACK064SD)
  • Spacer, part # ES/000-3610 (YQSOCKET064SDF)
  • Top rotational board, part # EMUL-S12XF/ADP-TOP-PCB-64
  • Bottom rotational board, part # ADP/BOT-PCB-QFP64-050
$985.00
EMUL-S12XF/ADP-TQ-64-Set 64 Pin TQ CPU package - This set connects an MC9S12XF emulator system to an 64 pin TQFP CPU site. The set consists of:
  • Surface mount TQ adapter base, part # ES/000-4492 (TQPACK064SD)
  • Spacer, part # EES/000-2786 (TQSOCKET064SDW)
  • Top rotational board, part # EMUL-S12XF/ADP-TOP-PCB-64
  • Bottom rotational board, part # ADP/BOT-PCB-QFP64-050
$710.00
EMUL-S12XD/ADP-NQ-80-Set 80 Pin NQ CPU package- This set connects an MC9S12 emulator system to an 80-pin NQFP CPU site. The set consists of:
  • Surface mount NQ adapter base, part # ES/000-2177 (NQPACK080SB)
  • Microcontroller cover, part # ES/000-2178 (HQPACK080SB)
  • Emulator cover, part # ES/000-2179 (YQPACK080SB)
  • Spacer, part # ES/000-3660 (YQSOCKET080SBF)
  • Top rotational board, part # EMUL-S12XD/ADP-TOP-PCB-80
  • Bottom rotational board, part # ADP/BOT-PCB-QFP80-065
$985.00
EMUL-S12XD/ADP-TQ-80-Set 80 Pin TQ CPU package - This set connects an MC9S12 emulator system to an 80-pin TQFP CPU site. The set consists of:
  • Surface mount TQ adapter base, part # ES/000-4534 (TQPACK080SB)
  • Spacer, part # ES/000-2870 (TQSOCKET080SBW)
  • Top rotational board, part # EMUL-S12XD/ADP-TOP-PCB-80
  • Bottom rotational board, part # ADP/BOT-PCB-QFP80-065
$715.00
EMUL-S12XD/ADP-NQ-112-Set 112 Pin NQ CPU package- This set connects an MC9S12 emulator system to an 112 pin NQFP CPU site. The set consists of:
  • Surface mount NQ adapter base, part # ES/000-2240 (NQPACK112SB)
  • Microcontroller cover, part # ES/000-2241 (HQPACK112SB)
  • Emulator cover, part # ES/000-2242 (YQPACK112SB)
  • Spacer, part # ES/000-3720 (YQSOCKET112SBF)
  • Top rotational board, part # EMUL-S12XD/ADP-TOP-PCB-112
  • Bottom rotational board, part # ADP/BOT-PCB-QFP112-065
 $1,075.00
EMUL-S12XD/ADP-TQ-112-Set 112 Pin TQ CPU package - This set connects an MC9S12 emulator system to an 112 pin TQFP CPU site. The set consists of:
  • Surface mount TQ adapter base, part # ES/000-4584 (TQPACK112SB)
  • Spacer, part # ES/000-2970 (TQSOCKET112SBW)
  • Top rotational board, part # EMUL-S12XD/ADP-TOP-PCB-112
  • Bottom rotational board, part # ADP/BOT-PCB-QFP112-065
$765.00
EMUL-S12XD/ADP-NQ-144-Set 144 Pin NQ CPU package- This set connects an MC9S12 emulator system to an 144 pin NQFP CPU site. The set consists of:
  • Surface mount NQ adapter base, part # ES/000-2303 (NQPACK144SD)
  • Microcontroller cover, part # ES/000-2304 (HQPACK144SD)
  • Emulator cover, part # ES/000-2305 (YQPACK144SD)
  • Spacer, part # ES/000-3776 (YQSOCKET144SDF)
  • Top rotational board, part # EMUL-S12XD/ADP-TOP-PCB-144
  • Bottom rotational board, part # ADP/BOT-PCB-QFP144-050
 $1,135.00
EMUL-S12XD/ADP-TQ-144-Set 144 Pin TQ CPU package - This set connects an MC9S12 emulator system to an 144 pin TQFP CPU site. The set consists of:
  • Surface mount TQ adapter base, part # ES/000-4632 (TQPACK144SD)
  • Spacer, part # ES/000-3065 (TQSOCKET144SDG)
  • Top rotational board, part # MUL-S12XD/ADP-TOP-PCB-144
  • Bottom rotational board, part # ADP/BOT-PCB-QFP144-050
$825.00

A flexible cable adapter set is an extension that may be used in applications where access to the target CPU site is limited. That means that a surface mount adapter alone cannot suffice for an appropriate emulator connection. Usually this is because the emulator would have to be physically positioned above the target CPU site.

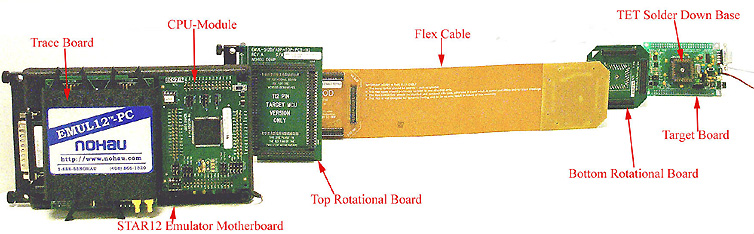

This cable set allows for all the signals from the surface mount adapter on the target card to be brought out in any of four directions - 0°, 90°, 180° or 270°. A typical flex cable adapter kit consists of the flex cable, an emulator end rotational board, a target end rotational board, and a surface mount base.

Part NumberFlexible Cable Adapter Extension Sets    Go to the top of this page Price Shopping Cart
EMUL-S12XF/ADP-FLEX-NQ-64-SetFlex extension kit for the 64 NQ type pin configuration MC9S12XF emulator system. Connects to an MC9S12XF family 64 pin NQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount NQ adapter base, part # ES/000-2105 (NQPACK064SD)
  • Microcontroller cover, part # ES/000-2178 (HQPACK080SB)
  • Emulator adaper cover, part # ES/000-2106 (HQPACK064SD)
  • Spacer, part # ES/000-3610 (YQSOCKET064SDF)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • Top rotator board (emulator end) part # EMUL-S12XF/ADP-TOP-PCB-64
  • Bottom rotator board, (target end) part number ADP/BOT-PCB-QFP64-050
 $2,495.00
EMUL-S12XF/ADP-FLEX-TQ-64-SetFlex extension kit for the 64 TQ type pin configuration MC9S12XF emulator system. Connects to an MC9S12XF family 64 pin TQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount NQ adapter base, part # ES/000-4492 (TQPACK064SD)
  • spacer, part # ES/000-2786 (TQSOCKET064SDW)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • Top rotator board (emulator end) part # EMUL-S12XF/ADP-TOP-PCB-64
  • Bottom rotator board, (target end) part number ADP/BOT-PCB-QFP64-050
 $2,295.00
EMUL-S12XD/ADP-FLEX-NQ-80-SetFlex extension kit for the 80 NQ type pin configuration MC9S12XD, MC9S12XE, MC9S12XF emulator system. Connects to an MC9S12XD, MC9S12XE, MC9S12XF family 80 pin NQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount NQ adapter base, part # ES/000-2177 (NQPACK080SB)
  • Microcontroller cover, part # ES/000-2178 (HQPACK080SB)
  • Emulator adaper cover, part # ES/000-2179 (YQPACK080SB)
  • Spacer, part # ES/000-3660 (YQSOCKET080SBF)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • Top rotator board (emulator end) part # EMUL-S12XD/ADP-TOP-PCB-80
  • Bottom rotator board, (target end) part number ADP/BOT-PCB-QFP80-065
 $2,495.00
EMUL-S12XD/ADP-FLEX-TQ-80-Set Flex extension kit for the 80 pin TQ type configuration MC9S12XD or MC9S12XE emulator system. Connects to an MC9S12XD, MC9S12XE, MC9S12XF family 144 pin TQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount TQ adapter base, part # ES/000-4534 (TQPACK080SB)
  • Spacer, part # ES/000-2870 (TQSOCKET080SBW)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • 144 pin top rotator board (emulator end) part # EMUL-S12XD/ADP-TOP-PCB-144
  • 144 pin bottom rotator board, (target end) part number ADP/BOT-PCB-QFP144-050
 $2,295.00
EMUL-S12XD/ADP-FLEX-NQ-112-SetFlex extension kit for the 112 NQ type pin configuration MC9S12XD or MC9S12XE emulator system. Connects to an MC9S12XD or MC9S12XE family 80 pin NQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount NQ adapter base, part # ES/000-2240 (NQPACK112SB)
  • Microcontroller cover, part # ES/000-2241 (HQPACK112SB)
  • Emulator adaper cover, part # ES/000-2242 (YQPACK112SB)
  • Spacer, part # ES/000-3720(YQSOCKET112SBF)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • Top rotator board (emulator end) part # EMUL-S12XD/ADP-TOP-PCB-112
  • Bottom rotator board, (target end) part number ADP/BOT-PCB-QFP112-065
 $2,495.00
EMUL-S12XD/ADP-FLEX-TQ-112-Set Flex extension kit for the 112 pin TQ type configuration MC9S12XD or MC9S12XE emulator system. Connects to an MC9S12XD or MC9S12XE family 144 pin TQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount TQ adapter base, part # ES/000-4584 (TQPACK112SB)
  • Spacer, part # ES/000-2970 (TQSOCKET112SBW)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • 144 pin top rotator board (emulator end) part # EMUL-S12XD/ADP-TOP-PCB-112
  • 144 pin bottom rotator board, (target end) part number ADP/BOT-PCB-QFP112-065
 $2,295.00
EMUL-S12XD/ADP-FLEX-NQ-144-SetFlex extension kit for the 144 NQ type pin configuration MC9S12XD or MC9S12XE emulator system. Connects to an MC9S12XD or MC9S12XE family 144 pin NQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount NQ adapter base, part # ES/000-2303 (NQPACK144SD)
  • Microcontroller cover, part # ES/000-2304 (HQPACK144SD)
  • Emulator adaper cover, part # ES/000-2305 (YQPACK144SD)
  • Spacer, part # ES/000-3776 (YQSOCKET144SDF)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • Top rotator board (emulator end) part # ADP/BOT-PCB-QFP144-050
  • Bottom rotator board, (target end) part number ADP/BOT-PCB-QFP144-050
 $2,495.00
EMUL-S12XD/ADP-FLEX-TQ-144-Set Flex extension kit for the 144 pin TQ type configuration MC9S12XD or MC9S12XE emulator system. Connects to an MC9S12XD or MC9S12XE family 144 pin TQFP target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount TQ adapter base, part # ES/000-4632 (TQPACK144SD)
  • Spacer, part # ES/000-3065 (TQSOCKET144SDG)
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • 144 pin top rotator board (emulator end) part # EMUL-S12XD/ADP-TOP-PCB-144
  • 144 pin bottom rotator board, (target end) part number ADP/BOT-PCB-QFP144-050
 $2,295.00
EMUL-S12XE/ADP-FLEX-BGA-208-TL-Set Flex extension kit for the 208 BGA, ball grid array SMD package type configuration MC9S12XD or MC9S12XE emulator system. Connects to an MC9S12XD or MC9S12XE family 208 Ball Grid Array target using a flex-cable, and allows connecting to the target at one any of 4 directions. This set consists of:
  • Surface mount BGA ball grid array adapter base, part # ES/000-4078-01
  • IC adapter, part # ES/140-1127-00
  • BGA Spacer ES/030-1127-00
  • A flex cable, part # EMUL/ADP/FLEX-CABLE/MALE-FEMALE
  • 208 pin top rotator board (emulator end) part # EMUL-S12XE/ADP-TOP-PCB-208
  • 208 pin bottom rotator board, (target end) part number ADP/BOT-PCB/S12XE-BGA208-1MM
 $2,795.00
