Nohau 68HC11 in-circuit pod to target site adapters
68HC11 40 pin adapters 68HC11 44 pin adapters 68HC11 48 pin adapters 68HC11 52 pin adapters 68HC11 64 pin adapters 68HC11 68 pin adapters 68HC11 84 pin adapters 68HC11 100 pin adapters


Part Number 40 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

EDI/44PG-40D-HC11D3-S 		Adapter assembly, 44-PGA to 40-DIP Converter for 68HC11D3  Aprilog product. $129.00


Part Number 44 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

EDI/44PG/QFS31-SD 		Adapter assembly, 44-pin PGA socket to 44-pin QFP Square 0.031-inch pitch. Includes one top and one EDI/44QFS31-SD base to solder to user target board. An  Aprilog product. $180.00

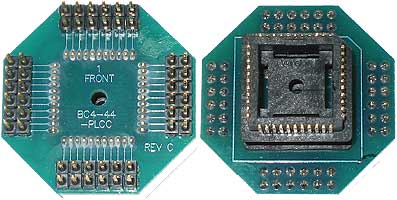

ET/EP4-44-WW 		44-Pin Logic analyzer test adapter. Plugs into a 44-pin PLCC socket and provides test points for each pin. Drawing  $149.00

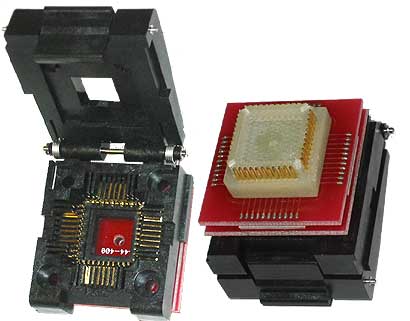

EDI/44PL/PL-ZL 		Programming and test zero Insertion force, for programming and test 44-pin PLCC CPU. An Aprilog product. $179.00


Part Number 48 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

EDI/EXT48D/D-2/6R 		Six inch extender, 48 pin DIP socket to 48 pin plug ends. An  Aprilog product. $120.00

EMUL68-PC/EXT-DIP48-2/6R 		Same as above, opsolete part numer. Six inch extender, 48 pin DIP socket to 48 pin plug ends. An  Aprilog product. $120.00


Part Number 52 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

EDI/48D/52PL-HC11A0 		48 pin DIP socket to 52 pin PLCC plug. An  Aprilog product. $120.00

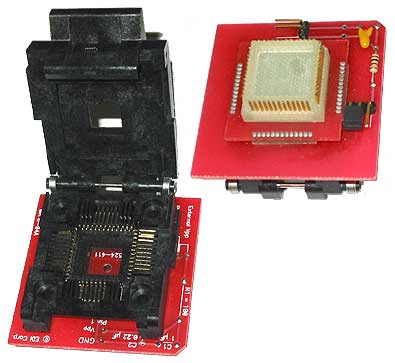

EMULl68-PC/PLCC52ZIF-PLCC52 		Programming and test zero Insertion Force, for Programming and test EPROM of 52-pin PLCC parts in POD-11E/-11S-DIP/-PLCC. EDI/52PL/PL-ZLP-HC11. An  Aprilog product. $225.00

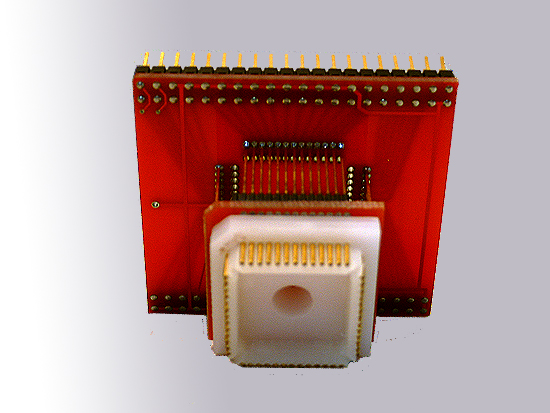

80NCP-52PL-EMUL68 		68HC11 In-circuit pod headers to 52 Pin PLCC Socket. An  Aprilog product. $120.00

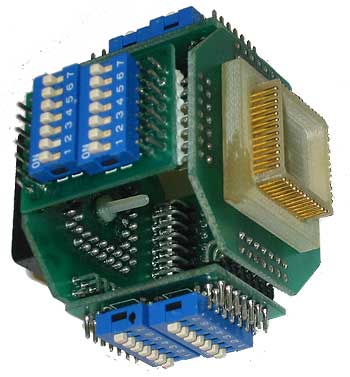

EDI/ISV52PL/PL 		52 Pin PLCC switched signal isolator with probe test pins. 52 Pin PLCC Socket on top, and PLCC 52 plug on the bottom. An  Aprilog product. $125.00

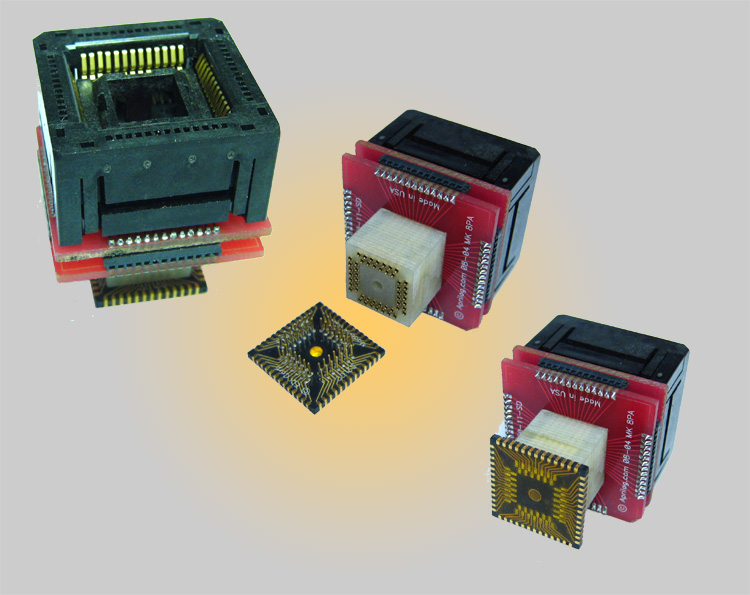

52PL-PL-ZO-SD 		52 Pin high grade PLCC ZIF Socket on top with 52 pad surface mount base. Hosts real CPU or PLCC emulator pod. Extra 52 pad, 0.743 mil square surface mount base is part number 52LC-SD. An  Aprilog product. $345.00

EDI/52PL/QFS26-SD 		52 Pin PLCC Socket on top, and QFS26, 52 pad surface mount bottom. Hosts real CPU or PLCC emulator adapter. An  Aprilog product. $230.00

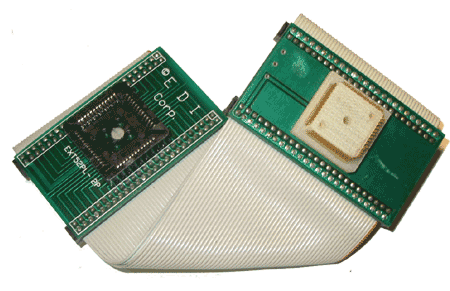

  6 Inch Extension Cable 52 pin PLCC Socket to PLCC Plug. An  Aprilog product. $156.00


Part Number 64 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

EDI/64QFS31-SDB 		Replacement Aprilog QFP square surface mount, 64 lead adapter base, 0.031-inch pitch. An  Aprilog product. $115.00

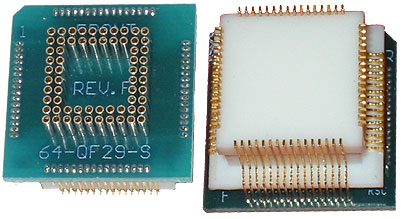

ET/EPP064QF29SM 		64 Pin, square 0.80mm pitch, surface mount adapter Drawing   $249.00

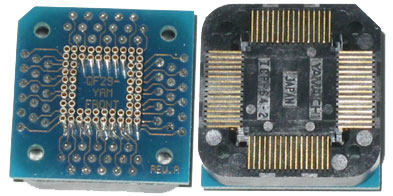

ET/EP5-064-QF29-YAM 		64 Pin, 0.80mm pitch, Yamaichi socket top adapter. This adapter secures the emulator to the socket base in place of the socket cap. Drawing   $249.00


Part Number 68 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

EDI/68PG/64QFS31-HC11F1 		68HC11F1 adapter for POD-11FE-PGA to SMT 64 lead, 0.031 pitch target site. Kit includes a SMT pin array that mates with female receptacles of the adapter top connected to the emulator pod. An  Aprilog product. $240.00

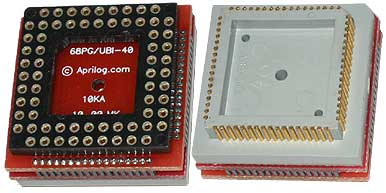

EDI/68PG/PL 		68 pin female PGA socket on top to 68 pin PLCC plug bottom. An  Aprilog product. $150.00

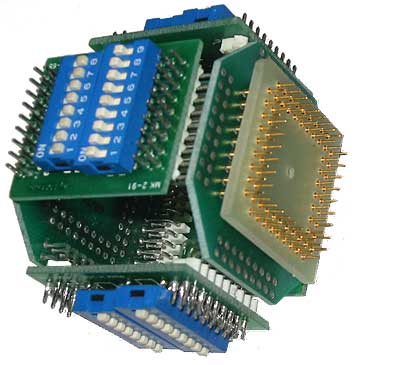

EDI/ISV68PG/PG-SPECIAL 		68 Pin signal isolator. PGA socket to 68 pin PGA plug. An  Aprilog product. $125.00

EDI/68PG/PL 		68 pin female PGA socket on top to 68 pin PLCC plug bottom. An  Aprilog product. $150.00

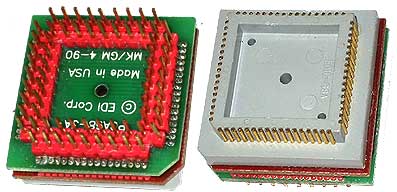

EDI/68PG/PL-SPECIAL 		68 male pins on top to 68 pin PLCC bottom plug. Ann  Aprilog product. $65.00

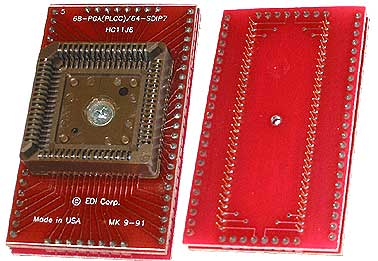

EDI/68PL64SD7-HC11J6 		68 pin PLCC socket top to 64 pin DIP for 68HC11J6. An  Aprilog product. $49.00

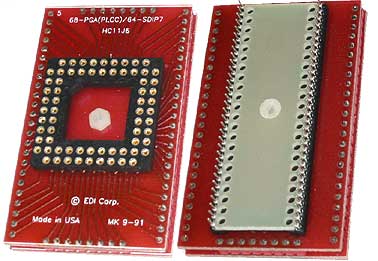

EDI/68PL64SD7-HC11J6-NL 		68 pin PGA socket top to 64 pin DIP for 68HC11J6. An  Aprilog product. $49.00

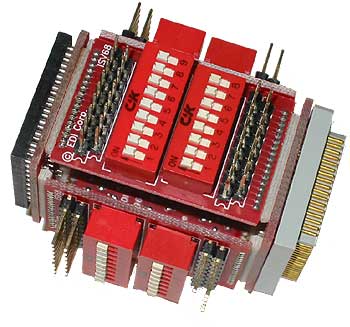

EDI/ISV68PG-PL 		68 Pin signal isolator. PGA socket to 68 pin PLCC plug. (Old part number EMUL68-PC/ PGA68-ISO-PLCC68) An  Aprilog product under part number ISV68PG-PL. $270.00

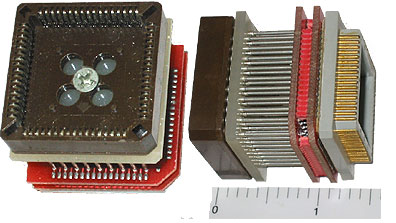

EDI/1EP68PL/PL 		68 Pin PLCC socket to 68 pin PLCC 1 inch emulator lift adapter. An  Aprilog product. $110.00

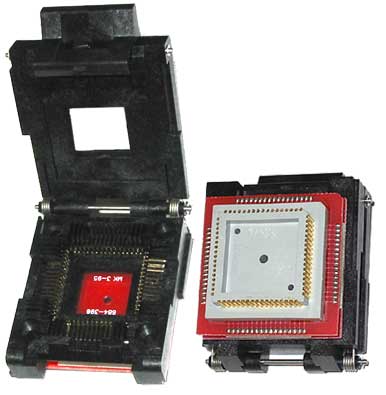

EDI/68PL/PL-ZL 		68 Pin programming and test zero Insertion Force. An  Aprilog product. $210.00

EDI/68PL/84PL-ZL-KA/K4 		68 Pin programming and test. zero Insertion Force 711KA PLCC parts in a POD-11KE/KS. An  Aprilog product. $210.00

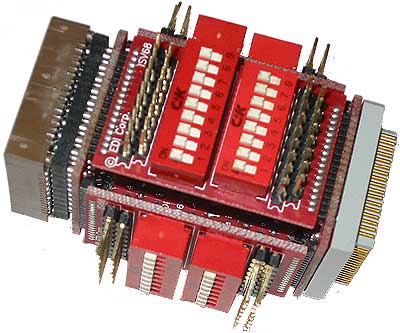

EDI/ISV68PL/PL 		68 Pin signal isolator. PLCC socket to 68 pin PLCC plug. An  Aprilog product. $195.00

EDI/EXT68PL/PL-1/6R 		6 Inch Extension Cable 68 pin PLCC Socket to PLCC Plug. An  Aprilog product. $225.00

EDI/EXT68PG/PL-1/6R 		6 Inch Extension Cable 68 pin PGA Socket to PLCC Plug. An  Aprilog product. $225.00


Part Number 84 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

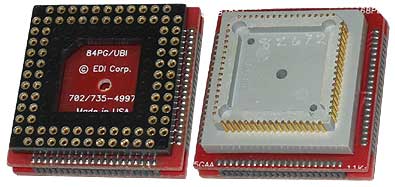

EDI/84PG/68PL-K4/KA4 		84-pin PGA socket to 84-pin PLCC plug for the 68HC11K or 68HC711K. An  Aprilog product. $160.00

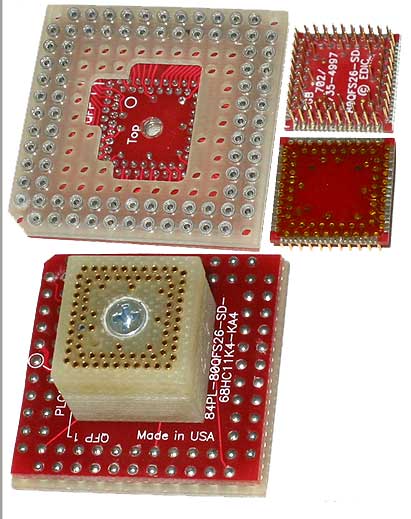

EDI/84PG/80QFS26-HC11K4 		84-pin QFP pad surface mount adapter kit. 84-pin PGA socket to 80-pin QFP adapter. An  Aprilog product. $350.00

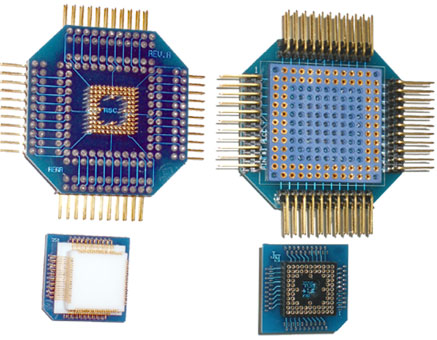

ET/AS-PGA3-QF14S-68HC11K4 		84-pin QFP surface pad mount adapter kit with logic test connectors. Drawing  $425.00

EDI/EXT84PG/PL-2/9R-HC11K4 		6 Inch Extension Cable 84 pin PGA Socket to PLCC Plug for the 68HC11K4. An  Aprilog product. $285.00

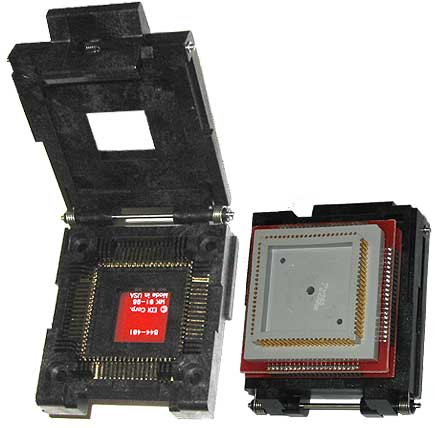

EDI/84PL/PL-ZL 		Programming and test zero Insertion Force, for Programming and test EPROM of 84-pin PLCC 711KA PLCC parts in a POD-11KE/KS. An  Aprilog product. $210.00

EDI/84PG/-PL 		84-pin PGA socket to 84-pin PLCC plug for most 84 pin in-circuit pods. An  Aprilog product. $160.00


Part Number 100 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

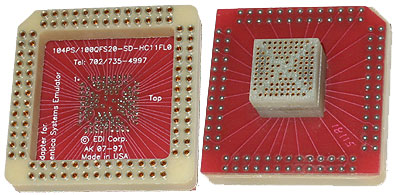

EDI/104NC/100QFS20-TOP-HC11FL0 		A 100-pin QFP adapter for the POD-11FL0-4.0. This adapter requires a 100QFS20-SD surface mount base. An  Aprilog product. $370.00

EDI100QFS20-SD 		Replacement surface mount base of the adapter for the FL0 100 pin QFP, solders to the target. $110.00

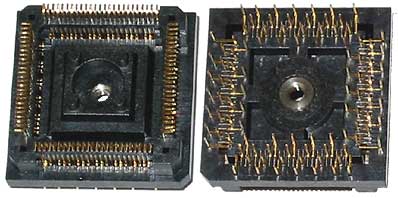

TQPACK100SD 		TET Replacement 0.5mm, 100 pin, square surface mount adapter base. Drawing  $95.00

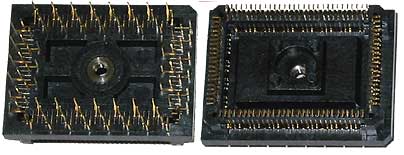

TQPACK100RB 		TET Replacement 0.65mm, 100 pin, rectangle surface mount adapter adapter base. Drawing  $95.00
