80C166 series emulator to target CPU site adapters


80 Pin adapters 100 Pin adapters 128 Pin adapters 144 Pin adapters Special adapters and extenders Emulator to Phytech Kitcon DVK adapter


Part Number 80 Pin Adapters for Emulator Pod to Target Site-    Go to the top of this page Price Shopping Cart

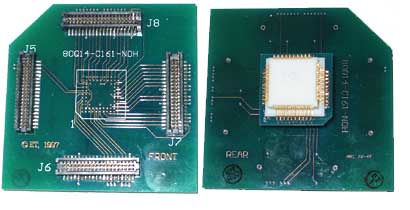

ET/AS-C161-QF14S-NOH 80 pin MQFP adapter for the square C161. The bottom portion solders to the user board. Includes one surface mount base part number ET/EPP-080-QF14A-SM $680.00

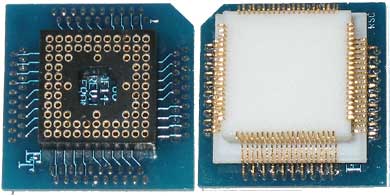

ET/EPP080QF14SM Additional 80 pin MQFP surface mount base. $425.00

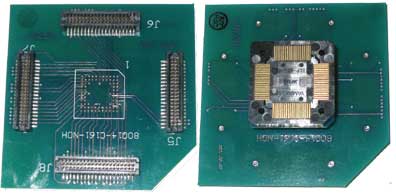

ET/AS-C161-QF14YAM-NOH 80 pin MQFP adapter for the square C161 V/K/O. The bottom portion of this adapter screws down to the top of the Yamaichi 80 pin socket (Surface mount adapter IC149-080-017-B5) $495.00

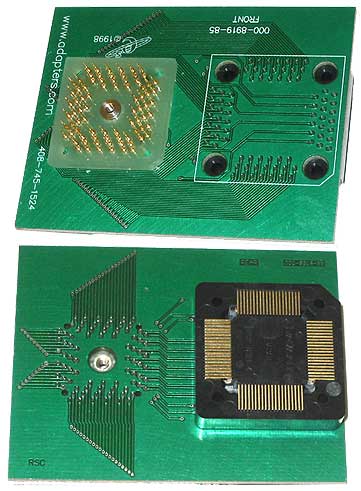

ES/110-7400-15 Emulator conversion adapter, 80 pin, .65mm pitch. This adapter plugs into/covers a Yamaichi 80 pin socket part # IC149-080-117/017-B5/S5 80 pin, 0.65mm pitch TQ and NQ male pin patterns (000-4532 = TQ/000-2177-00 = NQ). $405.00

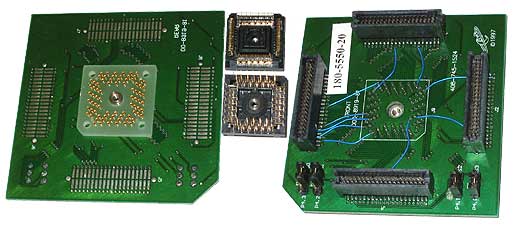

ES-180-5550-20 80 pin TQFP adapter for the square 80C164 CI package.Drawing   $665.00

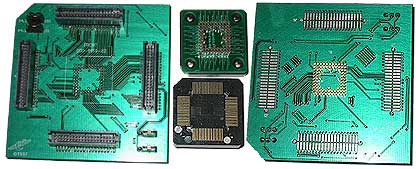

ES-180-5550-30 80C164 Surface mount, 80 pin MQFP emulation adapter. Drawing   $785.00


Part Number 100 Pin Adapters for Emulator Pod to Target Site-    Go to the top of this page Price Shopping Cart

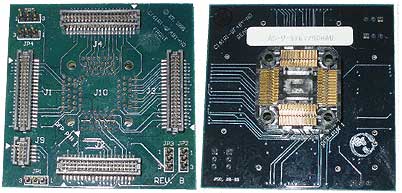

ET/AS-C161R1-QF49YAM-NOH For C161R1. 100 Pin QFP adapter. The bottom portion of this adapter screws down to the top of the Yamaichi 100 pin socket $679.00
ET/R163/C165-QF49S-NOH 100 pin TQFP adapter kit for the square C163 and C165. The bottom portion solders to the user board. Additional surface mount base is available, part number ET/EPP-100-QF49-SM. $1,205.00
ET/EPP-100-QF06-SM Surface mount adapter, 100 pin QFP, 0.65mm pitch. For C163, C165 Drawing   $425.00
ET/EPP-100-QF49-W Surface mount adapter kit, 100 pin QFP, 0.5mm pitch. $679.00

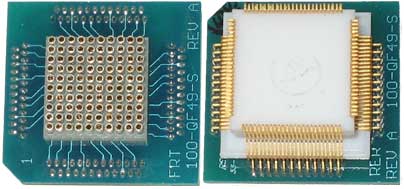

ET/EPP-100-QF49-SM Additional 100 pin TQFP surface mount base for the ET/R163/C165-QF49S-NOH listed above. Drawing   $425.00
ES/180-5680-10 80C161 Surface mount, 100 pin emulation adapter. Drawing   $850.00

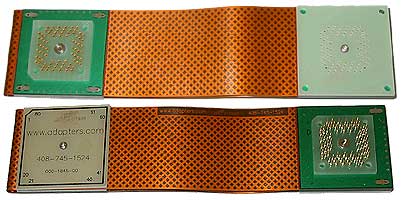

ES/110-8135-40 80 pin, 0.65mm pitch high-speed adapter flex cable. Interfaces to Adapters.com 80 pin TQ Series part # 000-4532 and NQ Series part # 000-2177-00. Drawing   $895.00


Part Number 128 Pin Adapters for Emulator Pod to Target Site-    Go to the top of this page Price Shopping Cart

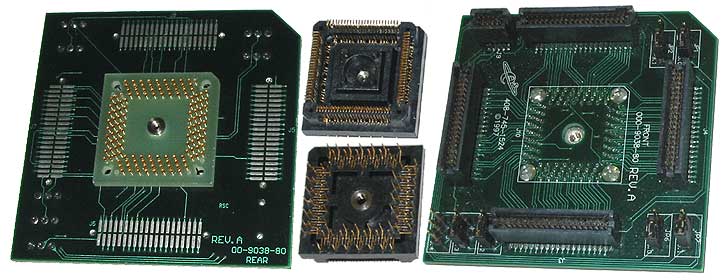

ES/180-5785-10 128-pin TQFP adapter for the square C161 Cx package. It is a Tokyo Eletech NQ adapter Drawing   $749.00




Part Number 144 Pin Adapters for Emulator Pod to Target Site-    Go to the top of this page Price Shopping Cart

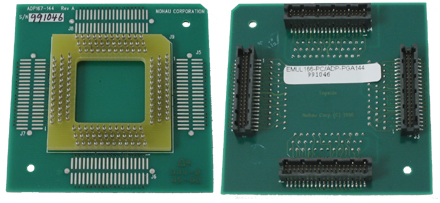

EMUL166-PC/ADP-PGA144 In-circuit pod PGA male to PQFP socket adapter. The base solders down into 144 pin QFP AMP production socket footprint. $195.00

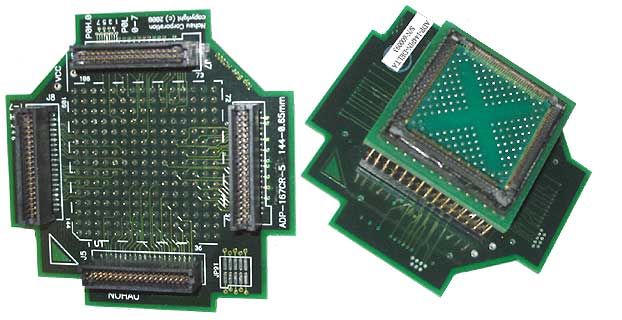

EMUL166-PC/ADP-144PIN-DELTA Clip over Delta Probe for the Infineon C167 and ST Microelectronics ST10 144 pin microcontrollers such as C167 CR and ST10-F168. $1,100.00

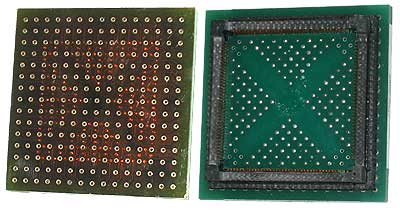

8800-0003 Delta Probe is an accurate mechanically non-invasive way to make contact with 0.5mm pitch 144 pin TQFP surface mount components Data Sheet   $120.00

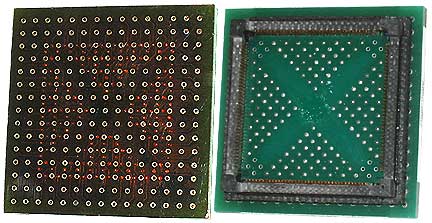

8800-0087 Delta Probe is an accurate mechanically non-invasive way to make contact with 0.65mm pitch 144 pin PQFP surface mount components Data Sheet   $139.00
EMUL166-PC/Extender-144 144 Pin extender adapter for direct connection betwee the unit under test and emulator in-circuit pod headers. Provides .5 inch lift from the board. $110.00

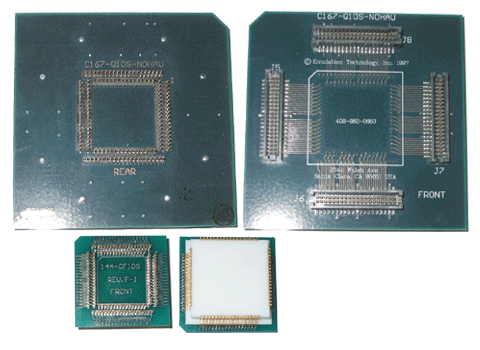

ET/AS-C167-QF10S-NOH 144 pin QFP adapter kit for the square C167. The bottom portion solders to the user board. Additional surface mount base is available, part number ET/EPP-100-QF49-SM. Drawing   $895.00

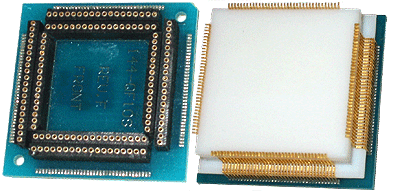

ET/EPP-144-QF10-SM Replacement 144-pin MQFP surface mount adapter base for the ET/AS-C167-QF10S-NOH Drawing   $485.00

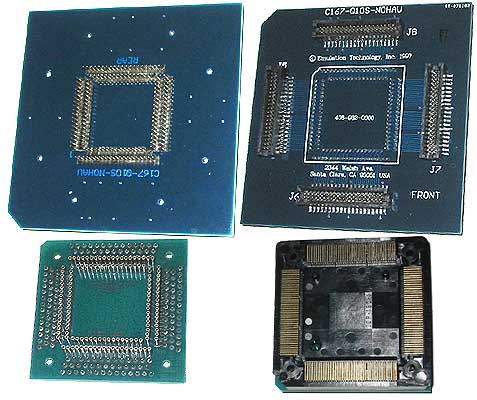

ET/AS-C167-QF10S-YAM-NOH 144 pin QFP adapter kit for the Yamaichi square C167 chip carrier. The bottom of the adapter bolts to the top of the surface mount Yamaichi chip carrier. Drawing   $750.00


Part Number Special Adapters for Emulator Pod to Target Site    Go to the top of this pagePrice Shopping Cart

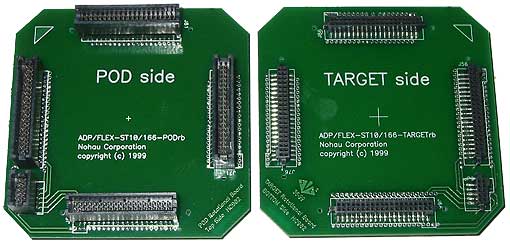

EMUL/ADP/FLEX-ST10/166-RB Set of two rotational boards to use with the flex cable to extend the adapter away from the emulator. One of the boards fits between the pod and flex cable, and the other board fits between the flex cable and the target adapter. Rotational boards for other microcontroller families are available through Nohau. Mechanical specifications are available for the custom rotational boards $295.00

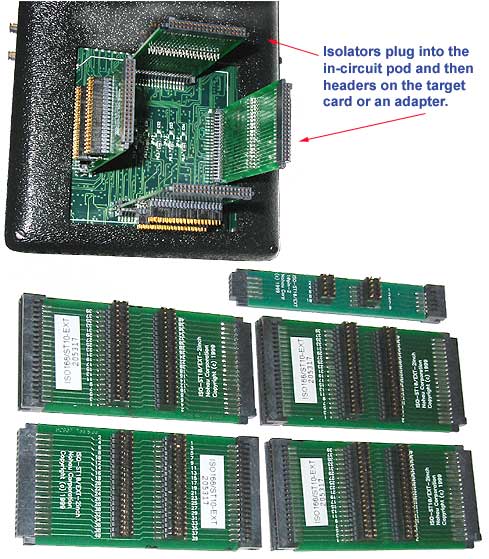

ISO166/ST10-EXT Isolator/extender kit for ST10 and 166 pods. Adds about 2 inches of clearance between pod and target and has jumpers allowing individual isolation of each pin to the target. $749.00
EMUL166-PC/ADP-EVAL-161C1 This adapter connects the Nohau emulator to a user defined C161 target board.  The specs are available from Nohau technical support in the USA. $395.00
EMUL166-PC/ADP-3V This mezzanine board inserts between the emulator pod and the target adapter to provide 3-volt target operation.  Supports the C161 and C165 C166 3 volt parts.  There are jumpers to allow any parallel port to be disconnected from the target. $395.00
