Nohau 80196 Emulator to target CPU site adapters



52 Pin Intel 80C196 series pod to target CPU site adapter 68 Pin Intel 80C196 series pod to target CPU site adapter 80 Pin Intel 80C196 series pod to target CPU site adapter 84 Pin Intel 80C196 series pod to target CPU site adapter 100 Pin Intel 80C196 series pod to target CPU site adapter


Part Number 52 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

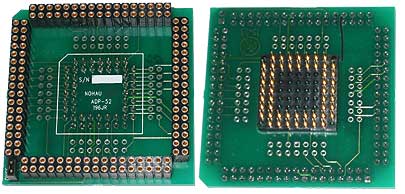

EMUL196-PC/JR-ADP-52/PGA 52-Pin adapter for the 80C196JQ, JR and JT. This adapter has a PGA socket on the bottom and the emulator connectors on the top. The bottom 0.1-inch grid pattern is standard for through-hole PLCC sockets with pin 1 at the center of one side.  This can be plugged into a PGA socket on the target which makes a solid connection to a target socket. $325.00
EMUL196-PC/JR-ADP-52/PLCC/ET 52-Pin PLCC socket adapter for the 80C196JQ, JR and JT $295.00

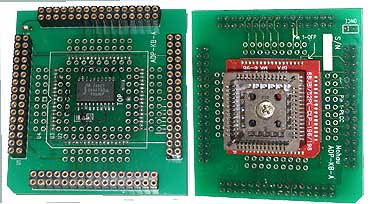

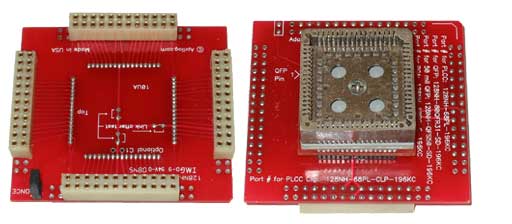

EMUL196-PC/198-ADP-52/CLIP 52-Pin clip over adapter for emulating the 8XC194 or 8XC198 with the KC/KD pod. Clips on to the MPu on the target card. $395.00
EMUL196-PC/198-ADP-52/PLCC/EDI 52-Pin adapter for emulating the 8XC194 or 8XC198 with the KC/KD pod. Recommended for low profile sockets. The bottom subassembly portion solders to the PC board. $395.00
EMUL196-PC/JR-ADP-52/CLIP 52-Pin Clip over adapter for the 80C196JQ, JR and JT PLCC chip. $295.00

Part Number 68 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart
EMUL196-PC/CA-ADP-68/CLIP/EDI Adapter clips over the surface mount 68-pin PLCC 80C196KC, 80C196KD. This option supports ONCE mode, which disables the target controller. $195.00
EMUL196-PC/CA-ADP-68/PGA Adapter, Pin Grid Array 196CA PGA 68-Pin adapter $45.00
EMUL196-PC/CA-ADP-68/PLCC/EDI Adapter, In-circuit Pod to 8xC196CA 68 pin PLCC target socket $55.00
EMUL196-PC/CA-ADP-68/PLCC/EDI For 80196CA. This adapter has a PLCC plug on the bottom and the emulator connectors on the top. $195.00
EMUL196-PC/CA-ADP-68/PGA For 80196CA. This adapter has a PGA socket The 0.1-inch grid pattern is standard for through-hole PLCC sockets with pin 1 at the center of one side. This adapter is also used for PLCC plug type adapters. $195.00
EMUL196-PC/CA-ADP-68/PLCC/ET For 80196CA. This adapter has a PLCC plug on the bottom and the emulator connectors on the top. $195.00

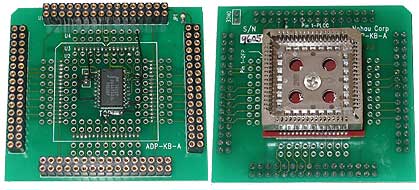

EMUL196-PC/KB-ADP-68/CLIP/EDI Adapter that clips over the target CPU surface mount 68-pin PLCC 80C196KB. This adapter supports ONCE mode, which disables the target controller. $295.00
EMUL196-PC/KC-ADP-68/PGA For 80196CA. This adapter has a PGA socket on the bottom and the emulator connectors on the top. The 0.1-inch grid pattern is standard for through-hole PLCC sockets with pin 1 at the center of one side. This adapter is also used for PLCC plug type adapters. $195.00
EMUL196-PC/KC-ADP-68/CLIP/EDI Adapter, In-circuit Pod to 8xC196KB/KC/KD 68 pin PLCC chip. $295.00
EMUL196-PC/KC-ADP-68/PLCC/EDI Adapter, In-circuit Pod to 196KB/KC/KD 68 pin PLCC socket. A 68-pin adapter recommended for low profile PLCC sockets. $395.00
EMUL196-PC/KC-ADP-68/PLCC/ET Adapter, In-circuit Pod to 196KB/KC/KD 68 pin PLCC socket. A 68-pin adapter recommended for deep profile PLCC sockets. $295.00

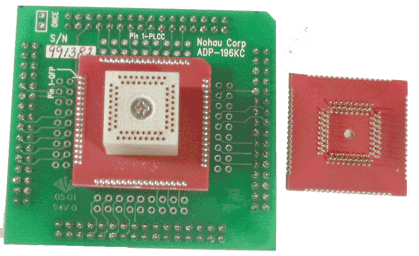

EMUL196-PC/KC-ADP-68/CQFP/EDI Adapter, In-circuit Pod to 196KB/KC/KD 68 pin QFP circuit board pads. Includes a male pin SMD adapter base and in-circuit pod interface card. $295.00
EMUL196-PC/KR-ADP-68/CLIP/EDI Adapter clips over the surface mount 68-pin PLCC 196KQ, KR, KS and KT. This adapter supports ONCE mode, which disables the target controller. $195.00

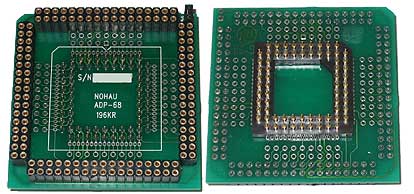

EMUL196-PC/KR-ADP-68/PGA Adapter 68-pin socket pin grid array for 8XC196KQ, 8XC196KR, 8XC196KS and 8XC196KT $195.00
EMUL196-PC/KR-ADP-68/PLCC/ET Adapter for 8XC196KQ, KR, KS and KT - 68-pin PLCC $295.00

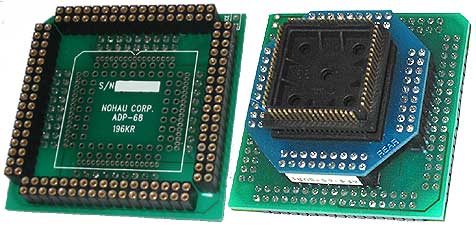

EMUL196-PC/KR-ADP-68/PLCC/EDI Adapter for 8XC196KQ, KR, KS and KT - 68-pin PLCC $295.00

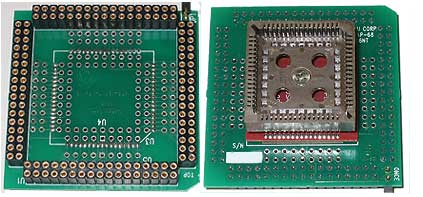

EMUL196-PC/NT-ADP-68/CLIP/EDI Adapter, In-circuit Pod to 80C196NT PLCC chip. Supports the ONCE debugging mode. $195.00

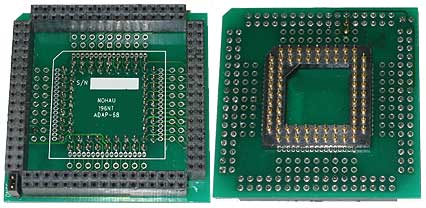

EMUL196-PC/NT-ADP-68/PGA This adapter has a PGA socket on the bottom and the emulator connectors on the top. The 0.1-inch grid pattern is standard for through-hole PLCC sockets with pin 1 at the center of one side.  This can be plugged into a PGA socket on the target which makes a solid connection to a target socket. This adapter is also used for PLCC plug type adapters. $195.00
EMUL196-PC/NT-ADP-68/PLCC/EDI Adapter, In-circuit Pod to 80C196NT 68 pin PLCC socket. A 68-pin adapter recommended for PLCC sockets. $195.00
EMUL196-PC/NT-ADP-68/PLCC/ET Adapter, In-circuit Pod to 80C196NT 68 pin PLCC socket. A 68-pin adapter recommended for deep profile PLCC sockets. $195.00

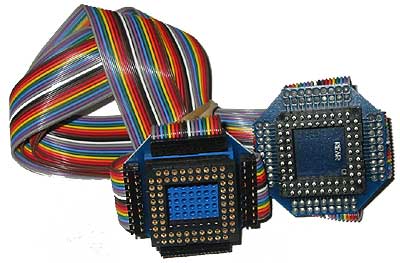

ET/ECM-068-PGA1-F-068-PGA1-11 9 Inch, 68 pin PGA extender cable. Female to male connection. Has 0.1-inch grid pattern that is standard for through-hole PLCC sockets $75.00

Part Number 80 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart
EMUL196-PC/KC-ADP-80QFP/EDI Adapter for 80-pin QFP rectangular adapter for the 8xC196KB/KC/KD. The bottom subassembly portion solders to user’s board. An additional surface mount base is available: part number EDI/80QF-R-31-SD. $475.00

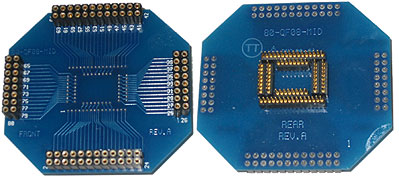

ET/EPP-080-QF08-LG Adapter for rectangular 80-pin QFP 8xC196KB/KC/KD. The bottom subassembly portion solders to user’s board. Extra bottom subassemblies (EPP-080-QF08-SM) are available separately. Drawing   $570.00
ET/EPP-080-QF08-SM Surface mount base for ET/EPP-080-QF08-LG Drawing   $220.00

Part Number 84 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart

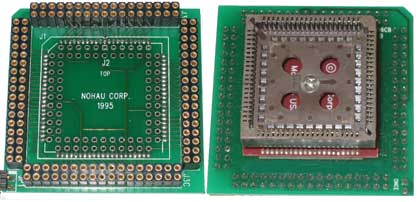

EMUL196-PC/CB-ADP-84/CLIP/EDI Adapter, In-circuit Pod to 80C196CB 84 pin to 80 pin PLCC clip over of the target CPU. $320.00

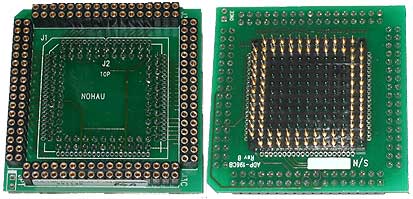

EMUL196-PC/CB-ADP-84/PGA Adapter, In-circuit Pod to 80C196CB 84 pin CPU socket $195.00
EMUL196-PC/CB-ADP-84/PLCC/EDI Adapter, In-circuit Pod for 80C196CB 84 pin PLCC socket. $195.00
EMUL196-PC/CB-ADP-84/PLCC/ET Adapter, In-circuit Pod for 80C196CB 84 pin to 84 pin grid array. $195.00

Part Number 100 Pin Adapters - Emulator Pod to Target Site    Go to the top of this page Price Shopping Cart
EMUL196-PC/NP-ADP100-QFP/EDI 100-pin QFP rectangular surface mount adapter for the NP or NU. The replacement surface mount base is EDI part number 100QFR26-SD $625.00

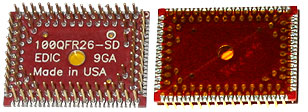

100QFR26-SD Replacement 100-pin QFP rectangular surface mount adapter base. $62.00
EMUL196-PC/NP-ADP100-SQFP/EDI 100-pin SQFP square surface mount emulation adapter kit for the 80C196NP or 80C196NU. $625.00
EMUL196-PC/NP-ADP100-SQFP/ET 100-pin SQFP square surface mount emulation adapter kit for the 80C196NP or 80C196NU. $625.00

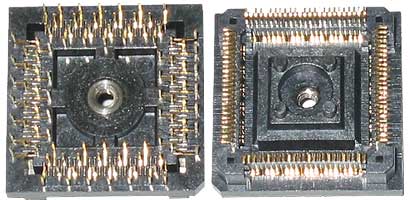

ES/000-4572 TQPACK100DSD, 100-pin Square Surface Mount emulation adapter, 5mm pitch. Drawing   $59.00
EDI/84PG/100QFR26-SD-196CB EDI 196CB Surface mount adapter kit. In-circuit Pod to PCB pads. $320.00

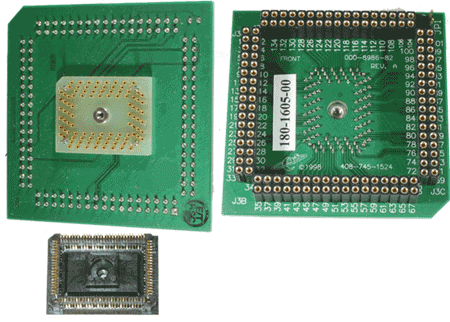

ES/180-1605-00 8xC196CB 100 pin, 0.65mm, surface mount, rectangular adapter kit. Drawing   $220.00
ES/000-4574 Replacement TQPACK100RB, 100-pin Rectangular surface mount base, .65mm pitch for ES/180-1605-00. Drawing   $59.00

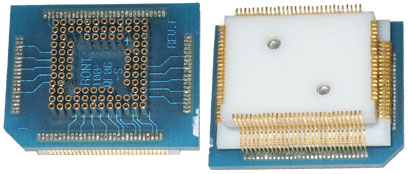

ET/EPP-100-QF06-SM Surface mount adapter base, 100 pin QFP, 0.65mm pitch. For 196NP and NU Drawing  $425.00
ET/EPP-100-QF06-SM A replacement 100-pin QFP surface mount adapter for the EMUL196-PC/ NP-ADP100-QFP/ED $130.00

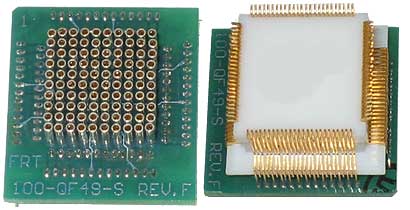

ET/EPP-100-QF49-SM A replacement 100-pin QFP surface mount base for the EMUL196-PC/NP-ADP100-SQFP/ET Drawing   $365.00
EMUL-PC/ISO-160 Isolator/extender kit with 0.10 inch headers. Adds about 2 inches of clearance between pod and target and has switches allowing individual isolation of each pin to the target. $240.00
