Nohau Brand 80C31 and 80C51 Series In-Circuit Emulators and Accessories

We are just beginning to post our inventory. If you don't see what you need, call or drop us a line.
800.68.NOHAU - 800.686.6428 - in the USA or 650.375.0409 international.
Email the target chip part number and clock speed for a configured emulator spec - price - delivery
 A full in-circuit emulator consists of an Emulator Card, In-Circuit Emulator Pod, and an optional Trace Card that mount in a chassis. Target socket adapters are needed for some processors.
Part Number 80C31/51 Series Emulator Cards - Required - Back to top Price Order it

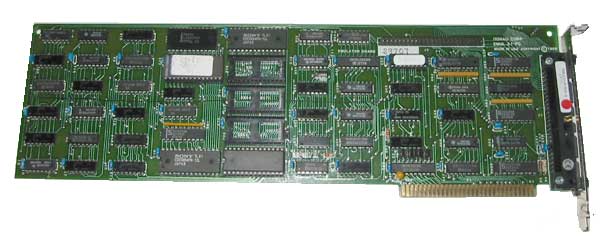

EMUL51-PC/ E32-16 Emulator Card, 16-MHz, 32K emulation memory $395.00

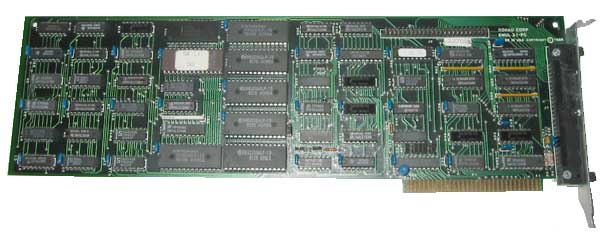

EMUL51-PC/ E128 Emulator Card, 12-MHz, This 128K emulator has 64K code space and separate 64K read-write (MOVX) data space. $595.00
EMUL51-PC/ E128-16 Emulator Card, 16-MHz, This 128K emulator has 64K code space and separate 64K read-write (MOVX) data space. $1095.00
EMUL51-PC/ E128-24 Emulator Card, 24-MHz, 128K This 128K emulator has 64K code space and separate 64K read-write (MOVX) data space. $1195.00
EMUL51-PC/ E128-33 Emulator Card, 33-MHz, This 128K emulator has 64K code space and separate 64K read-write (MOVX) data space. $1,295.00

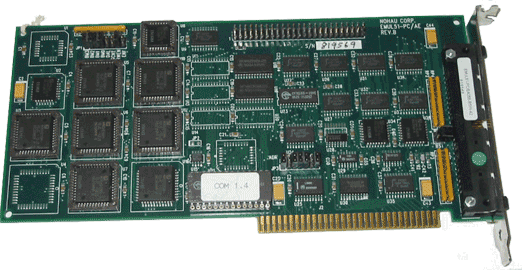

EMUL51-PC/ EA256-BSW-24 Emulator Card, 24-MHz, 256K emulation memory advanced bank switching The emulator advanced (EA) units offer many additional features over standard emulator boards. Ten user-selectable bank switch modes as well as normal 64K code and 64K Xdata for non-banked applications. $2,595.00

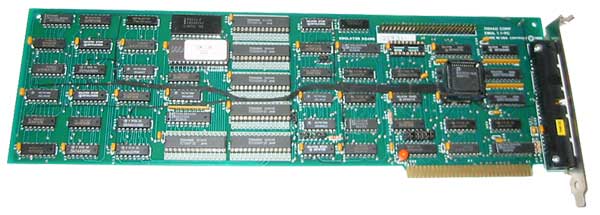

EMUL51-PC/ EA256-C320-BSW-33 Emulator Card, Bankswitching emulator for DS80C320 operate only with POD–C320–33 or POD–C323–33. The emulator advanced (EA) units offer many additional features over standard emulator boards. Ten user-selectable bank switch modes as well as normal 64K code and 64K Xdata for non-banked applications. Can be converted to normal 80C51 emulation by replacing one PROM. $2,595.00

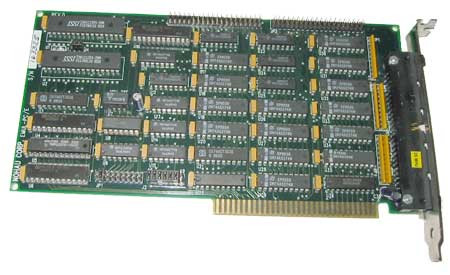

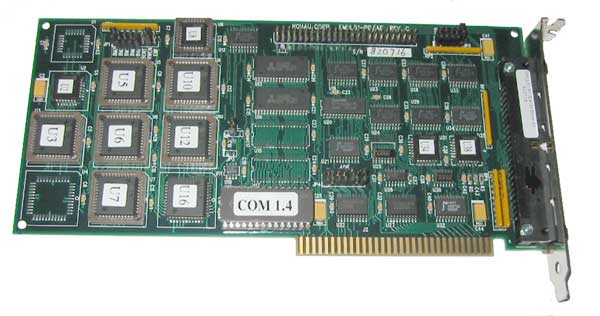

EMUL51-PC/ EA256-BSW-50 Emulator Card, 50-MHz, advanced bank switching, 256K emulation memory advanced bank switching The emulator advanced (EA) units offer many additional features over standard emulator boards. Ten user-selectable bank switch modes as well as normal 64K code and 64K Xdata for non-banked applications. $3,195.00


Part Number 8051 Optional Triggered Real-Time Trace Cards  -  Back to top Price Order it

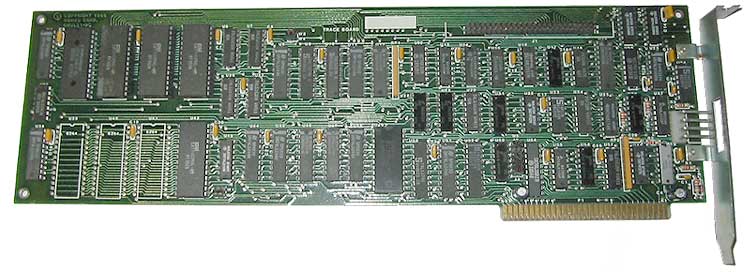

EMUL51-PC/ TR4 Trace Card, 12-MHz, 4-kiloframe, 2 level trigger, real-time $395.00
EMUL51-PC/ TR4-16 Trace Card, 16-MHz, 4-kiloframe, 2 level trigger, real-time $695.00
EMUL51-PC/ TR16-16 Trace Card, 16-MHz, 16-kiloframe, 2 level trigger, real-time $795.00

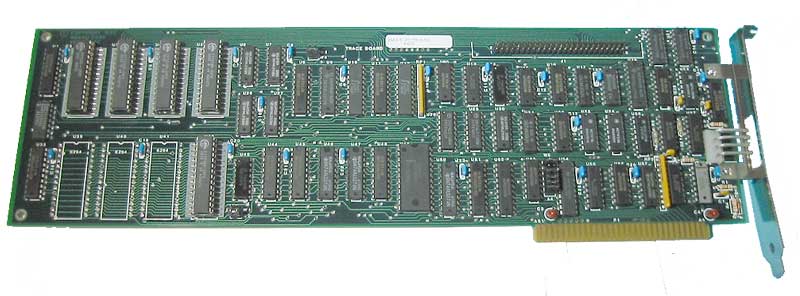

EMUL51-PC/ TR16-50 Trace Card, 50-MHz, 16-kiloframe, 2 level trigger, real-time $1,295.00
EMUL51-PC/ ETR64-16 Trace Card, 16-MHz, 64-kiloframe, 8 level trigger, enhanced real-time $2,295.00
EMUL51-PC/ ETR64-50 Trace Card, 50-MHz, 64-kiloframe 8 level trigger, enhanced real-time $2,495.00
EMUL51-PC/ ETR256-16 Trace Card, 16-MHz, 256-kiloframe, 8 level trigger, enhanced real-time $2,595.00


Part Number 80C31/80C51 Series In-Circuit Pods - Required - Back to top Price Order it
POD-C054 80C054 12 MHz, 40 pin DIP in-circuit pod $95.00
POD-CL410 80CL410 12 MHz, 40 pin DIP in-circuit pod $95.00
POD-L51P-16 16-MHz low voltage hooks-mode pod for the Philips 8XL51FA/ FB/ FC. 3.0 to 3.3 volts. The pod contains a 16-MHz crystal. The emulator must be at least 16 MHz to run with an on-board pod crystal, but a 12-MHz emulator can be used with a 12 MHz or slower external crystal or oscillator. $495.00
POD-CL580-16 80CL580 16 MHz, 40 pin DIP in-circuit pod $95.00
POD-C152-DIP-16 80C152 16 MHz, 40 pin DIP in-circuit pod $495.00
POD-C152-PGA-16 80C152 16 MHz, in-circuit pod, PGA Connection requires a target DIP or PLCC to pod adapter. $495.00
POD-C154HF-42 80C154 42 MHz In-circuit pod $495.00
POD-C31-16 80C31 16-MHz in-circuit pod $395.00
POD-C31-33 80C31 33-MHz in-circuit pod $795.00
POD-C31-S 80C31 12MHz, Single chip mode emulation in-circuit pod. $395.00
POD-C31-S-16 80C31 16MHz, Single chip mode emulation in-circuit pod. $445.00
POD-C31-S-24 80C31 24MHz, Single chip mode emulation in-circuit pod. $495.00
POD-C32-16 80C32 16-MHz in-circuit pod $445.00
POD-C32-1-BSW 80C32 Bank Switching, 12-MHz in-circuit pod $195.00
POD-C32-BSW-16 80C32 Bank Switching, 16-MHz in-circuit pod $495.00
POD-C32-30 80C32 30-MHz in-circuit pod $745.00
POD-C32HF-42 42-MHz 80C32 high frequency pod. Requires EA emulator card for 42 MHz. This pod is capable of bank switching up to the emulator frequency with EA256/768-BSW-50 and E128/256-BSW emulators. $995.00
POD-C451-DIP-16 80C451 16 MHz In-circuit pod, 40 pin DIP connection $495.00
POD-C451-PGA-16 80C451 16 MHz In-circuit pod, pin grid array connection $495.00
POD-C452 80C452 12MHz In-circuit pod $495.00
POD-C452-PGA 80C452 12 MHz In-circuit pod $195.00
POD-C452-PGA-16 80C452 16 MHz In-circuit pod $495.00
POD-C51B 80C51 12 MHz In-circuit pod $395.00
POD-C51B-24 80C51 24 MHz In-circuit pod $495.00
POD-51EH-C504-40 40-MHz enhanced hooks mode pod for the Infineon C504. Consists of an add-on processor module for C504 (PM51-EH-SAB-C504) and an enhanced hooks port replacement unit (EMUL51-PC/PRU-EH). Interchangeable add-on processor modules for other derivatives can be used with the enhanced hooks port replacement unit. Requires 50-MHz trace and emulator boards. This pod is designed to plug into a 44-pin PGA to 44-pin QFP solder-down adapter, such as the EDI/44PG/QFS31-SD. This requires the SAMTEC/MPAT-044-A-G-80; a 44-pin male-to-male PGA adapter for use with the POD-C51EH series. Supports both external and internal modes. $995.00
POD-51EH-C505C-20 20-MHz enhanced hooks mode pod for the Infineon C505C. Requires 50-MHz trace and emulator boards for 20-MHz operation. (Note: The 20 MHz for this derivative corresponds to 40 MHz for a regular 8031.) Consists of an add-on processor module for C505C (PM51-EH-SAB-C505C) and enhanced hooks port replacement unit (EMUL51-PC/PRU-EH). Interchangeable add-on processor modules for other derivatives can be used with the enhanced hooks port replacement unit. This pod is designed to plug into a 44-pin PGA to 44-pin QFP solder-down adapter, such as the EDI/44PG/QFS31-SD. Supports both external and internal modes. $995.00
POD-51EH-C505CA-20 Supports C505CA - 2R - LM. Infineon 20-MHz in-circuit emulator pod. Requires 50-MHz trace and emulator boards for 20-MHz operation. Consists of an add-on processor module for C505CA (PM51-EH-SAB-C505CA) and an enhanced hooks port replacement unit (EMUL51-PC/PRU-EH). Interchangeable add-on processor modules for other derivatives can be used with the enhanced hooks port replacement unit. This pod is designed to plug into a 44-pin PGA to 44-pin QFP solder-down adapter, such as the EDI/44PG/QFS31-SD Supports both external and internal modes. $995.00
POD-51EH-C505L-20 20-MHz enhanced hooks mode pod for the Infineon C505L consists of an add-on processor module for C505L (PM51-EH-C505L) and an enhanced hooks port replacement unit (EMUL51-PC/PRU-EH). Interchangeable add-on processor modules for other derivatives can be used with the enhanced hooks port replacement unit. Requires 50-MHz trace and emulator boards for 20-MHz operation. Adapters for the P-MQFP package are available. (ES/180-5550-65) Supports both external and internal modes. $995.00
POD-51EH-C508-10 10-MHz enhanced hooks mode pod for the Infineon C508 (Note: The 10 MHz for this derivative corresponds to 40 MHz for a regular 8031.) Consists of an add-on processor module for C508 (PM51-EH-C508) and the enhanced hooks port replacement unit (EMUL51-PC/PRU-EH). Interchangeable add-on processor modules for other derivatives can be used with the enhanced hooks port replacement unit. Requires 50-MHz trace and emulator boards. Adapters for the PMQFP see ES/180-5545-00. Supports both external and internal modes. $995.00
POD-51EH-C513A0-16 16-MHz enhanced hooks mode pod for the Infineon C513AO consists of an add-on processor module for C513AO (PM51-EH-C513AO) and an enhanced hooks port replacement unit (EMUL51-PC/PRU-EH). Interchangeable add-on processor modules for other derivatives can be used with the enhanced hooks PRU. Requires 50-MHz trace and emulator boards For the P-MQFP package order adapter Part # EDI44PG44QFS31S2. For the PLCC44 package order adapter Part # EMUL51-PC/PGA44-PLCC44. Supports both external and internal modes.. $995.00
POD-51EH-C515-24 24-MHz enhanced hooks mode pod for the Infineon C515. Consists of an add-on processor module for C515 (PM51-EH-SAB-C515) and an enhanced hooks port replacement unit (EMUL51-PC/PRU-EH). Interchangeable add-on processor modules for other derivatives can be used with the enhanced hooks port replacement unit. Requires 24-MHz trace and emulator boards. Adapters for the PMQFP package are available (see ES/180-5550-40 and ES/180-5550-45.) Supports both external and internal modes. $995.00
POD-51EH-C541U-12 12-MHz In circuit pod for AMD 80C541. Requires ES/180-3900-00 44 pin PLCC pod to target site adapter. $295.00
POD-51EH-TSRD2-32 32-MHz pod for Atmel TS83C51Rx2 and TS87C51Rx2. This pod supports a 32-MHz x1 clock or a 16-MHz x2 clock $995.00
POD-51HB-C52-33 33-MHz hooks-mode pod for 8XC51/ 52 / 54 / 58, 8X51/ 52, 80C31/ 32, 8031/ 32. Requires an EMUL51-PC/EA256-BSW-50 and an optional 16-kiloframe, 50-MHz standard trace or at least a 33-MHz advanced trace board or a 50-MHz enhanced trace board. This pod terminates to a 44-pin PGA. $1,395.00
POD-51HB-C66x-20 20-MHz hooks-mode pod for the 6-clock Philips C66x. This pod requires 50-MHz trace and emulator boards. For the 44-pin PLCC package order adapter part # EMUL51-PC/ PGA44-PLCC44. For the QFP package order adapter part # EDI/44PG/QFS31-SD. This pod terminates to a 44-pin PGA. Supports the 8xC660, 8xC662, 8xC664 and 8xC668. $1,195.00
POD-C51-FX-12 12 MHz 8XC51FA/ FB/ FC, 8XC51/ 52/ 54/ 58, 8X51/ 52, 80C31/ 32, 8031/ 32, hooks-mode pod. 40-pin DIP. Uses Intel special emulation technology chip. $995.00
POD-C51-FX-16 8XC51FA/ FB/ FC, 8XC51/ 52/ 54/ 58, 8X51/ 52, 80C31/ 32, 8031/ 32. 16-MHz hooks-mode pod. 40-pin DIP. Uses Intel special emulation technology chip. $1,095.00
POD-C51-FX-24 8XC51FA/ FB/ FC, 8XC51/ 52/ 54/ 58, 8X51/ 52, 80C31/ 32, 8031/ 32. 24-MHz hooks-mode pod. 40-pin DIP. Uses Intel special emulation technology chip. $1,295.00
POD-C51GB-PGA 80C51GB In-circuit pod $495.00
POD-51HB-C51RX-33 8XC51RA/ RB/ RC/ RD+ Philips 33-MHz hooks-mode pod Requires the EMUL51-PC/EA256-BSW-50 emulator board and optional 16K, 50-MHz standard trace or at least a 33-MHz enhanced trace board. This pod terminates to a 44-pin PGA. For the 44-pin PLCC package order part #EMUL51-PC/PGA44-PLCC44. For the QFP package order part # EDI/44PG/QFS31-SD. For a 40-pin DIP package order adapter EDI/44PG/40D-S-8051. $1,395.00
POD-51SL-16 80C51SL 16 MHz Low voltage keyboard processor pod $395.00
POD-C515A-12 80C515 12-MHz (ROM-less) pod. For enhanced 80C515A. 80C515A chip must be supplied by user. Expanded on-chip RAM is not supported. Use a 20-MHz or faster emulator for 12-MHz operation. 68-pin PGA from pod. Use optional EMUL51-PC/PGA68-PLCC68 adapter for PLCC target. Port 2 is upper address bus only. Port 0 is address/data bus. P3.6 is WRITE, P3.7 is READ. $145.00
POD-C515A-18 80C515A 18-MHz (ROM-less) pod. For enhanced 80C515A. 80C515A chip must be supplied by user. Expanded on-chip RAM is not supported. Use a 20-MHz or faster emulator for 18-MHz operation. 68-pin PGA from pod. Use optional EMUL51-PC/PGA68-PLCC68 adapter for PLCC target. Port 2 is upper address bus only. Port 0 is address/data bus. P3.6 is WRITE, P3.7 is READ. $195.00
POD-517 80C517 12 MHz In-circuit pod $95.00
POD-517B 80C517B 12 MHz In-circuit pod $195.00
POD-517B-PGA 80C517B 12 MHz In-circuit pod with PGA adapter interface $195.00
POD-C252/C51FA-BSW-16 80C252 & 80C51FA i6 MHz Bank Switching In-circuit pod $195.00
POD-C52 8XC51/ 52 / 54 / 58, 8X51/ 52, 80C31/ 32, 8031/ 32, Single chip mode, 12-MHz pod for 40pin DIP. $895.00
POD-51HB-C52-33 33-MHz hooks-mode pod for 8XC51/ 52 / 54 / 58, 8X51/ 52, 80C31/ 32, 8031/ 32. Requires an EMUL51-PC/EA256-BSW-50 and an optional 16-kiloframe, 50-MHz standard trace or at least a 33-MHz advanced trace board or a 50-MHz enhanced trace board. This pod terminates to a male 44-pin grid array for in-circuit adapters. $1,395.00
POD-C520-PGA-33 DS8XC520, DS8XC530 and DS80C320 33-MHz pod. Pod operates only with EA256-C530-BSW-33 or EA768-C530-BSW-33 emulator boards. 52-pin PGA connection from the pod. To plug into a 40-pin DIP 'C520 or 'C320-target socket, use optional EDI/52PG/40D-530/520-S adapter. To plug into a 44-pin PLCC 'C520 socket, use optional EDI/52PG/44PL-530/520. To plug into a 52-pin LCC 'C530 socket, use optional PGA52-PLCC52. Optional trace board must be EMUL51-C/TR16-50, EMUL51-PC/ETR64-50 or EMUL51-PC/ETR256-50. $1,295.00
POD-C528-20 8XC528, 8XC524 12-MHz hooks-mode in-circuit pod for 40-pin DIP. $895.00
POD-C535 80C535 in-circuit pod $195.00
POD-C552-PGA-33 80C552 30 MHz in-circuit pod. Port 2 is upper address bus only. Port 0 is address/data bus. P3.6 is WRITE, P3.7 is READ. $895.00
POD-C554-PGA-33 33-MHz hooks mode pod for the Philips 8xC554, 2.7 V to 5.5 V (maximum 16 MHz at 5 V) Requires the EMUL51-PC/EA256-BSW-50 emulator board and optional 16K 50-MHz standard or enhanced trace or at least a 33-MHz advanced trace board. The EMUL51-PC/PGA68-PLCC68 adapter is required to mate to target. $995.00
POD-C558-16 16-MHz hooks-mode pod for 8xC557, 83CE558, 89CE558, 8xCE559 and 8xCE560. Contact Nohau for availability. Use ET/EPP-080-QF08-LG adapter to solder to user target board. The pod contains a 16-MHz crystal. The emulator must be at least 16 MHz to run with an on-board pod crystal, but a 12-MHz emulator can be used with a 12-MHz or slower external crystal or oscillator. $1,195.00
POD-C558-16-BSW 8xC557, 83CE558, 89CE558, 8xCE559 and 8xCE560 16 MHz bank switching in-circuit pod Use ET/EPP-080-QF08-LG adapter to solder to your target board. $1,295.00
POD-C572-16 80C572 16 MHz in-circuit pod. $195.00
POD-C576-16 80C576 16 MHz in-circuit pod. $195.00
POD-C592-PGA-16 80C592 16 MHz in-circuit pod. Use EDI/68PG/80QFR31-SD-592 adapter. $995.00


Part Number Adapters - Emulator Pod to Target Site Back to top Price Order it
EMUL51-PSD/ ADP-80-NQ-Set An 80-pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 80-pin NQ adapter base part # ES/000-2174, an emulator cover (YQ) part # ES/000-2176, a microcontroller cover (HQ) part # ES/000-2175, a spacer part # ES/000-3658 and the EMUL-51/ADP-uPSD3000-80 adapter mezzanine board. $595.00
EMUL51-PSD/ ADP-80-TQ-Set An 80-pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 80-pin TQ adapter base part # ES-000-4532, a spacer part # ES/000-2865 and the EMUL-51/ADP-uPSD3000-80 adapter mezzanine board. $400.00
EMUL51-PC/ DIP40-PLCC44 EDI/40D/44PL-8051-L adapter, 40-pin DIP socket to 44-pin PLCC plug. $180.00
EMUL51-PC/ EXT-DIP40 EDI/EXT40D-2/6R extender cable, 6-inch, for 40-pin DIP. $85.00
EMUL51-PC/ DIP40-ISO 40-pin DIP Extender/Isolator All lines switched $65.00
EDI/ 40D/ 44QFS31-SD-8051 Adapter assembly, 40-pin DIP socket to 44-pin QFP Square 0.031-inch pitch, Solder-Down, 8051 family. Includes one top and one 44QFS31-SD base to solder to user target board. $140.00
EDI/44PL/40D-S-8051 Adapter for the top side of some Nohau 40-pin pods to allow you to place a 44-pin PLCC part into a 40-pin DIP socket on your Nohau pod. (This adapter is not for the target connection side.) $80.00
EDI/44QFS31-SD Additional base only: 44-pin QFP Square 0.031-inch pitch Solder-Down base for EDI/40D/44QFS31-8051. To solder to an additional target board. $70.00
ET/AS-DIP-QF16S-8031/51 40-pin DIP socket to 44-pin QFP solder-on pattern. $280.00
EDI/40D/20S030-SD-8051/2051 Adapts 40-pin DIP pod to 20-pin Small Outline .300-inch solder down pattern for 8051 family pods to 2051 and 1051 targets. Does not emulate on-chip comparator. $180.00
EMUL51-PC/ ATMEL2051 Adapter to emulate Atmel AT89C2051, AT89C1051 using POD-C52. 40-pin DIP socket accepts either pod. 20-pin DIP plug to target system. $195.00


Part Number 44 Pin Adapters - Emulator Pod to Target Site Back to top Price Order it
EMUL51-PC/DIP40-PLCC44 EDI/44PL 40-pin DIP to 44-pin PLCC plug. $180.00
EMUL51-PC/ PGA44-PLCC44 EDI/44PG/PL-L adapter, 44-pin PGA socket to 44-pin PLCC plug. $120.00
EMUL51-PC/ PGA44-PLCC44-EL2 EDI/2E44PG/PL extender-adapter, 44-pin PGA socket to 44-pin PLCC plug rigid 2-inch elevator or tower. $180.00
EMUL51-PC/ PGA44-DIP40-C550 EDI/44PG/40D-550-S adapter to use POD-C550-PGA in a target with a DIP socket. $75.00
EDI/ 44PG/LC-SD Adapter assembly, 44-pin PGA socket to 44-pin PLCC, to solder to user target board. Includes one top and one EDI/44LC-SD base $190.00
EDI/ 44LC-SD Additional base only. 44-pin PLCC solder down base for EDI/44G/LC-SD $70.00
EDI/44PG/ QFS31-SD Adapter assembly, 44-pin PGA socket to 44-pin QFP Square 0.031-inch pitch, Solder-Down, 8051 family. Includes one top and one EDI/44QFS31-SD base to solder to user target board. $140.00
EDI/44PG/40D-S-8051 Adapter for 44-pin PGA to a 40-pin DIP $80.00
ES/180-3900-00 Replacement Emulation Solutions 44-pin PLCC adapter for the POD-51EH-C541U. Plugs into a 44-pin PLCC socket. $425.00


Part Number 52 Pin Adapters - Emulator Pod to Target Site Back to top Price Order it
ES/000-2085 A replacement 52-pin solder-down adapter NQ base. $70.00
ES/000-2086 A replacement 52-pin NQ microcontroller cover (HQ) $65.00
ES/000-2087 A replacement 52-pin NQ emulator cover (YQ) $75.00
ES/000-3588 A replacement 52-pin NQ spacer between the solder-down base and the adapter. $50.00
ES/000-4472 A replacement 52-pin TQ solder-down adapter base. $65.00
ES/000-2755 A replacement 52-pin TQ spacer between the solder-down base and the adapter. $55.00
ES/000-2174 A replacement 52-pin solder-down adapter NQ base $100.00
ES/000-2175 A replacement 52-pin NQ microcontroller cover (HQ) $85.00
ES/000-2176 A replacement 52-pin NQ emulator cover (YQ). $85.00
ES/000-3658 A replacement 52-pin NQ spacer between the solder-down base and the adapter. $55.00
ES/000-4532 A replacement 52-pin TQ solder-down adapter base. $75.00
ES/000-2865 A replacement 52-pin TQ spacer between the solder-down base and the adapter. $55.00
EMUL51-PSD/ ADP-52-NQ-Set An 52-pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 52-pin NQ adapter base part # ES/000-2085, an emulator cover (YQ) part # ES/000-2087, a microcontroller cover (HQ) part # ES/000-2086, a spacer part # ES/000-3588 and the EMUL-51/ADP-uPSD3000-52 adapter mezzanine board. $530.00
EMUL51-PSD/ ADP-52-TQ-Set An 52-pin adapter set for the uPSD3000 emulator. This set consists of a Tokyo Eletech 52-pin TQ adapter base part # ES-000-4472, a spacer part # ES/000-2755 and the EMUL-51/ADP-uPSD3000-52 adapter mezzanine board $390.00
EMUL51-PC/ PGA52-PLCC52 EDI/52PG/PL-L adapter, 52-pin PGA socket to 52-pin PLCC plug. $130.00
EDI/ 52PG/40D-530/520-S Adapter, 52-pin PGA socket to 40-pin DIP, to plug into 80C320 or 8XC520 DIP target with POD-C520-PGA. (530/520 family). $85.00
EDI/ 52PG/44PL-530/520 Adapter, 52-pin PGA socket to 44-pin PLCC, to plug into 8XC520 PLCC target with POD-C520-PGA $135.00
EDI/52PG/44QFS31-SD-530/520 Adapter, 52-pin PGA socket to 44-pin Quad Flat Square 0.031-inch pitch, solder-down, for 8XC520 target with POD-C520-PGA $295.00


Part Number 64 Pin Adapters - Emulator Pod to Target Site Back to top Price Order it
ES/180-5545-00 Emulation Solutions 64-pin MQFP adapter for POD-51EH-C508. $395.00
ES/180-1400-00 Replacement adapter for the discontinued POD-931xX-12 pods, solder-down, for 64-pin PQFP package $400.00
ES/180-1400-01 Replacement adapter for the discontinued POD-931xX-12 pods, solder-down, for 64-pin SDIP package $200.00


Part Number 68 Pin Adapters - Emulator Pod to Target Site Back to top Price Order it
EMUL51-PC/ PGA68-PLCC68 EDI/68PG/PL adapter, 68-pin PGA socket to 68-pin PLCC plug. $140.00
EMUL51-PC/ PGA68-ISO EDI/ISV68PG/PG isolator, 68-pin PGA. $280.00
EMUL51-PC/ PGA68-ISO-PLCC6 EDI/ISV68PG/PL adapter-isolator, 68-pin PGA to 68-pin PLCC $245.00
EDI/68PG/80QFR31-SD-552 Adapter assembly, 68-pin PGA socket to 80-pin QFP Rectangular 0.031-inch pitch, solder-down, 8XC552. Includes one top and one 80QFR31-SD base to solder to user target board. $295.00
EDI/68PG/80QFR31-SD-592 Adapter assembly, 68-pin PGA socket to 80-pin QFP Rectangular 0.031-inch pitch, solder-down, 8XC592. Includes one top and one 80QFR31-SD base to solder to user target board. $295.00
EMUL51-PC/ PGA68-PLCC68 EDI/68PG/PL adapter, 68-pin PGA socket to 68-pin PLCC plug. $140.00
EMUL51-PC/ PGA68-ISO EDI/ISV68PG/PG isolator, 68-pin PGA $280.00
EDI/68PG/80QFR31-SD-552 Adapter assembly, 68-pin PGA socket to 80-pin QFP Rectangular 0.031-inch pitch, solder-down, 8XC552. Includes one top and one 80QFR31-SD base to solder to user target board. $295.00
EDI/68PG/80QFR31-SD-592 Adapter assembly, 68-pin PGA socket to 80-pin QFP Rectangular 0.031-inch pitch, solder-down, 8XC592. Includes one top and one 80QFR31-SD base to solder to user target board. $295.00
ES/180-3950-10 Replacement adapter for the discontinued POD-931xX-12 pods, plugs into 68-pin PLCC socket $220.00


Part Number 80 Pin Adapters - Emulator Pod to Target Site Back to top Price Order it
EDI/ 80QFR31-SD Additional base only: 80-pin QFP Rectangular 0.031-inch pitch solder-down base for 68PG/80QFR31-552. To solder to an additional target board. $125.00
ET/ EPP-080-QF08-LG Adapter for 80-pin QFP. Solders to user target board. For POD-C558-16 and POD-598-KIT. Optional for POD-5001. $405.00
ES/180-5550-65 Emulation Solutions 80-pin QFP adapter for POD-51EH-C505L. Solders to user target board. $450.00
ES/180-5550-40 Emulation Solutions 80-pin QFP adapter for POD-51EH-C515. Solders to user target board. This adapter has a socket that accepts a regular chip when the pod is not plugged into an adapter. $595.00
ES/180-5550-45 Emulation Solutions 80-pin QFP adapter for POD-51EH-C515. Solders to user target board. $450.00
ES/180-3960-10 Emulation Solutions 68-pin PLCC adapter for POD-51EH-C515 and POD-51EH-C515A. $240.00
ES/180-5550-50 Emulation Solutions 80-pin QFP adapter for POD-51EH-C515C. Solders to user target board. This adapter has a socket that accepts a regular chip when the pod is not plugged into an adapter. $595.00
ES/180-5550-55 Emulation Solutions 80-pin QFP adapter for POD-51EH-C515C. Solders to user target board. Includes one ES/000-4534 base. Additional bases are available separately. $595.00
ES/000-4534 Spare solder-down base for the ES/180-5550-55 80-pin QFP adapter above. $80.00


Part Number 84 Pin Adapters - Emulator Pod to Target Site Back to top Price Order it
ES/180-3975-10 Emulation Solutions 84-pin PLCC adapter for POD-51EH-C517A. Plugs into an 84-pin PLCC socket. $335.00


Part Number 100 Pin Adapters - Emulator Pod to Target Site Back to top Price Order it
ES/180-5690-10 Emulation Solutions 100-pin QFP adapter for POD-51EH-C517A. Solders to user target board. $515.00
ES/180-5690-20 Emulation Solutions 100-pin QFP adapter for POD-51EH-C517A. Solders to user target board. This adapter has a socket that accepts a regular chip when the pod is not plugged into an adapter. $650.00


Part Number In-Circuit Emulator Chassis - Required Back to top Price Order it
EMUL-PC/B0X-HSP Emulator chassis with parallel port I/O $595.00
EMUL-PC/B0X-USB Emulator chassis with PC USB I/O $595.00
